Sinotruk HOWO Chuangfu blue-plate 7 m³ multi-function dust-suppression sprinkler truck: square sealed storage tank, rotating tail mist cannon and independent spray circuits on a compact 4×2 light chassis with a 4,495 kg GVWR.
Blue-plate status means unrestricted city driving, while the short body passes through residential blocks, back alleys, campuses and scenic narrow roads — sprinkling and long-range misting in a single vehicle for fine urban sanitation work.
Product overview
Announcement Parameters
- Vehicle Name: Chengliwei Sinotruk HOWO 7 m³ multi-function dust-suppression sprinkler truck
- Vehicle Type: Sinotruk HOWO Chuangfu blue-plate 7 m³ multi-function dust-suppression sprinkler (China VI)
- Body Style: Square sealed anti-corrosion tank, rotating tail mist cannon, multiple independent spray circuits, top safety rails
- Tank Volume: 7 m³
- GVWR: 4,495 kg (blue-plate light truck limit)
- Roof Standard Equipment: Manhole inlet, top ring safety rail, tail rotating long-range mist cannon, extended suction hose storage bracket
- Appearance: White HOWO single-row cab; white/gray/green tri-tone square tank with Chengli CLW logo; red/white reflective steel guards
- Access: HOWO factory single-row side doors, side maintenance ladder, anti-slip tail mist-cannon platform
- Spray Layout: Front opposed road flushing, dual-side green-belt irrigation, rear dust suppression and tail mist cannon with multi-mode switching; independent ball valves per circuit
Chassis Configuration
- Chassis Brand: Sinotruk HOWO
- Chassis Model: HOWO Chuangfu light Class-II cargo chassis
- Cab: Single-row wide cab with factory heating/cooling A/C, power windows, central locking and digital instruments
- Drive Type: 4×2 rear-drive blue-plate light chassis
- Tires: 7.00R16 heavy-load steel radial tires
- Transmission: 5-speed manual gearbox with factory PTO driving the sprinkler/mist systems
- Fuel Type: Diesel
- Emission Standard: China VI
- Brake System: ABS anti-lock braking, air parking brake for stable stopping
- Advantage: Blue-plate with no city restrictions; compact body for narrow areas; sprinkler + remote mist cannon in one for road cleaning, irrigation and site dust control
Body Configuration
- Tank Structure: 7 m³ square thickened carbon-steel tank with multiple anti-wave baffles, shot-blasted anti-corrosion finish; manhole inlet, overflow valve, level sight window and top ring safety rail for safe maintenance
- Core Pump & Piping: 60-type self-priming/self-draining sprinkler pump with pump-in/pump-out circuit; standard 60-type fire quick-fill coupling and extended sealed suction hose for stable pressure and fast intake
- Conventional Sprays: Front opposed nozzles for road flushing, dual-side sprays for green-belt irrigation, rear broad dust suppression and cooling; three circuits switchable independently
- Dust-Suppression Mist Cannon: Rotating tail cannon with jet/fine-rain/mist modes; long mist throw for site dust control, air humidification and garden disinfection
- Electric Control: Integrated cab control panel with one-touch start/stop and mode switching for sprinkler and cannon; real-time tank level and pump status display
- Applications: Road watering and cleaning in back alleys, residential communities, campuses and scenic areas; dust suppression, green irrigation, site dust control and air disinfection — one machine for sanitation, property and landscaping needs

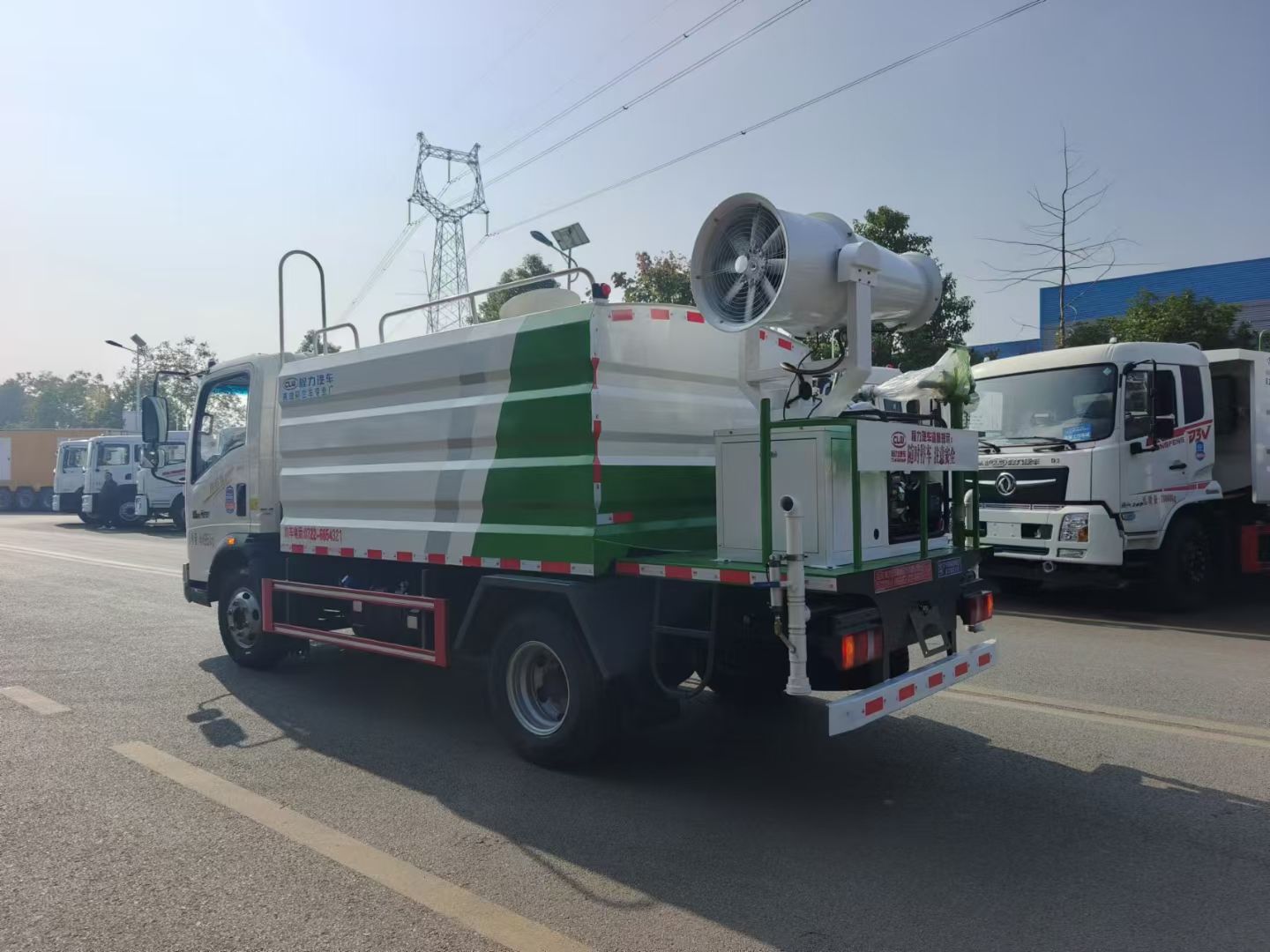

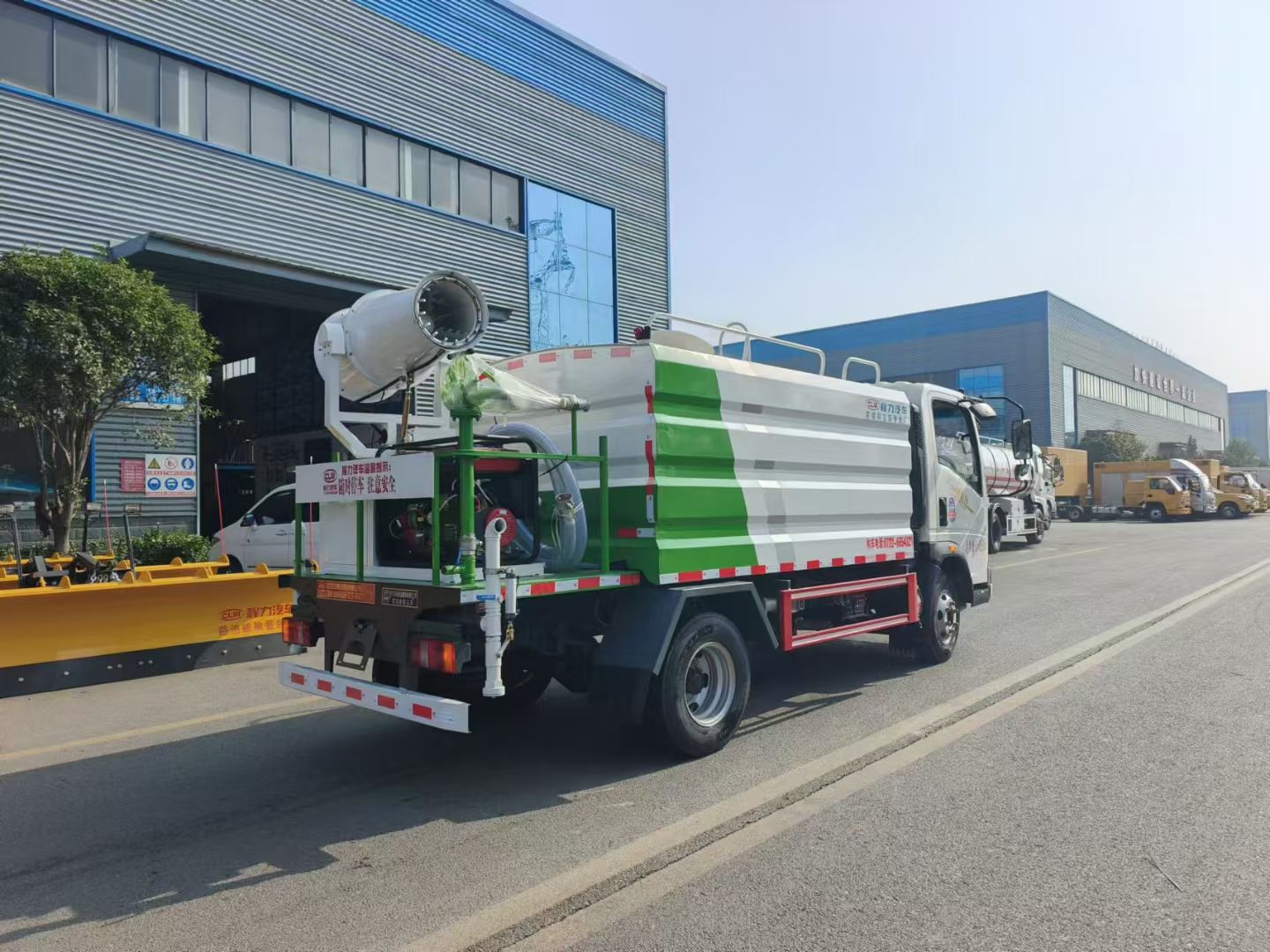

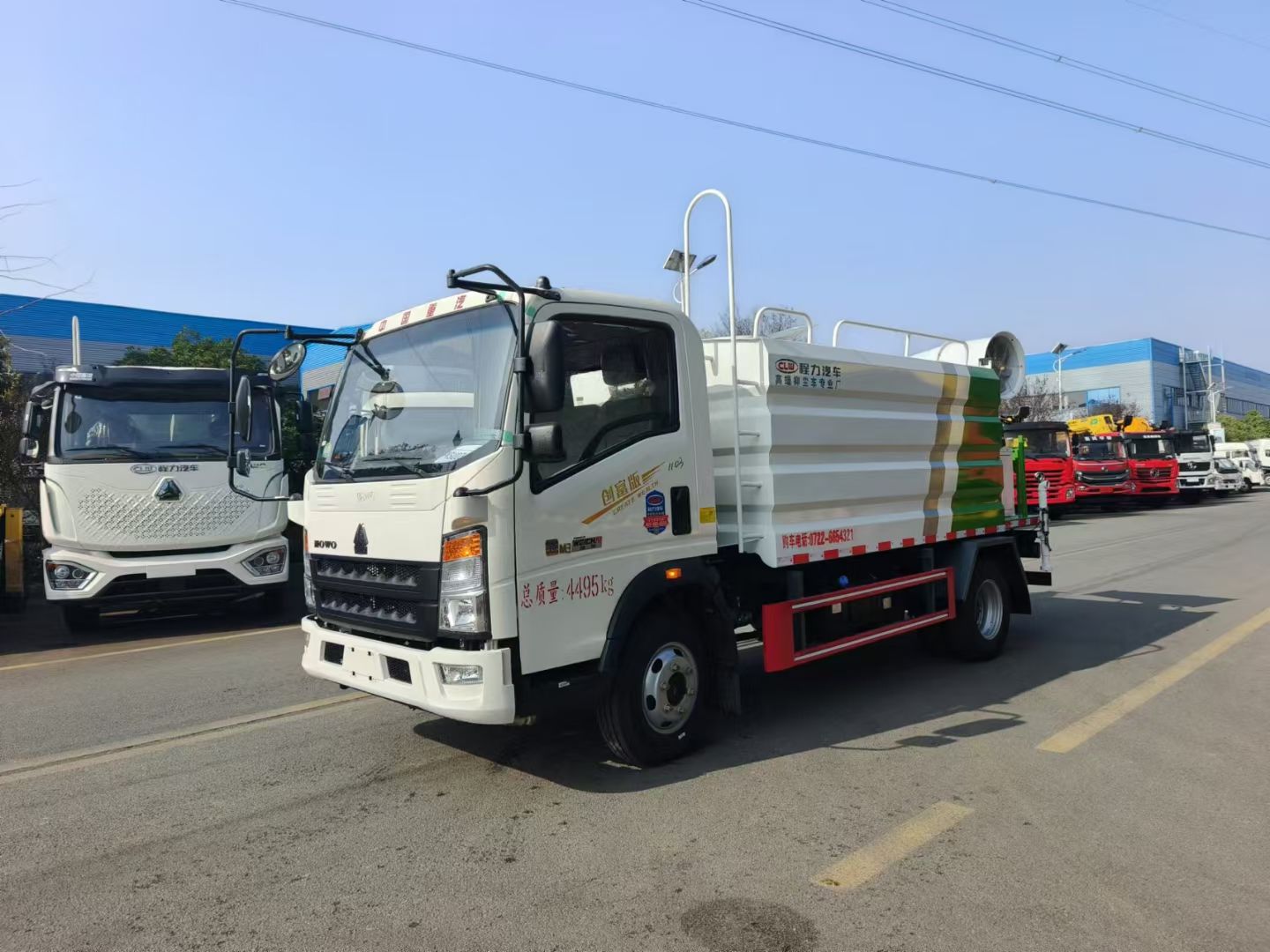

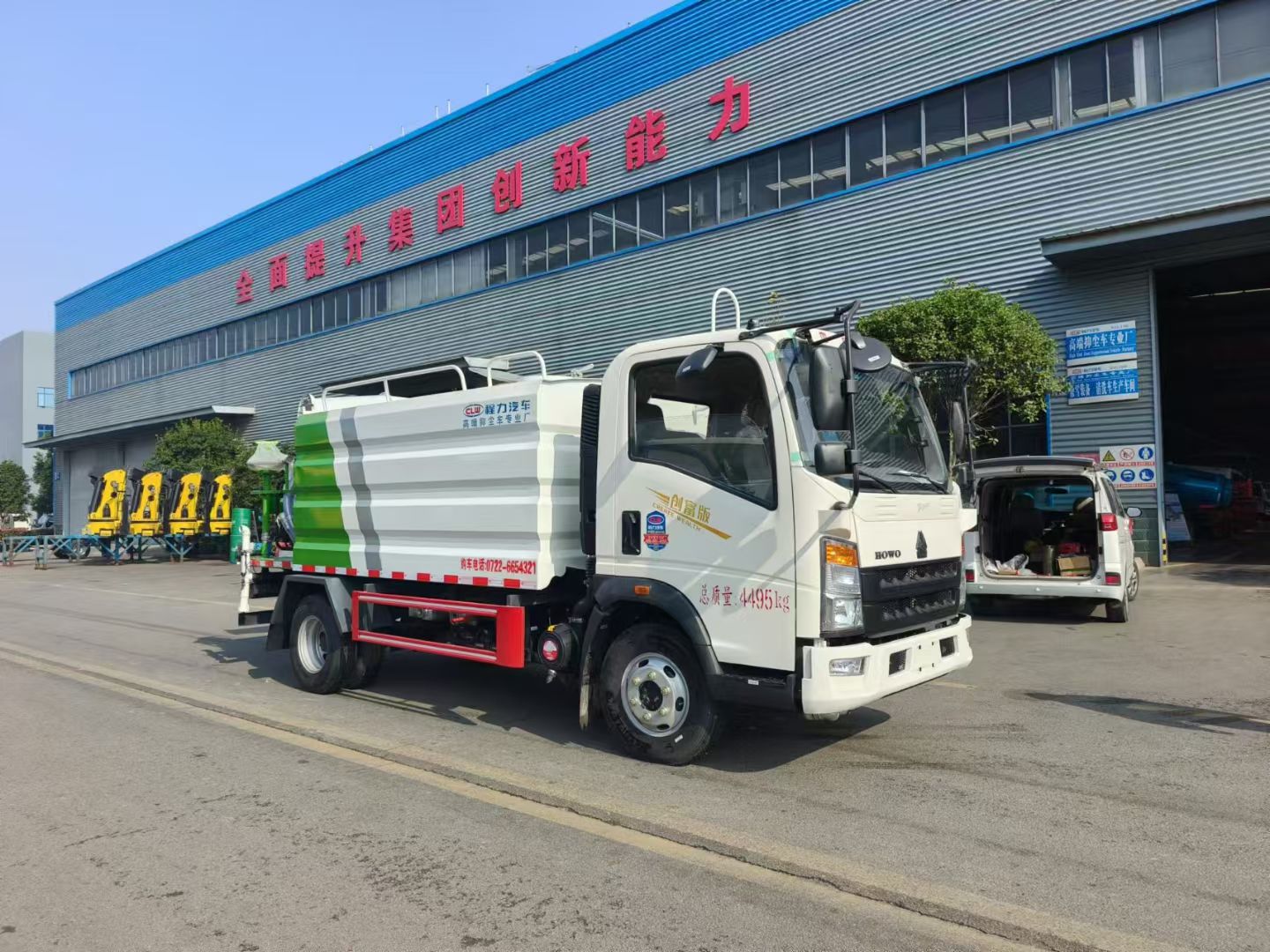

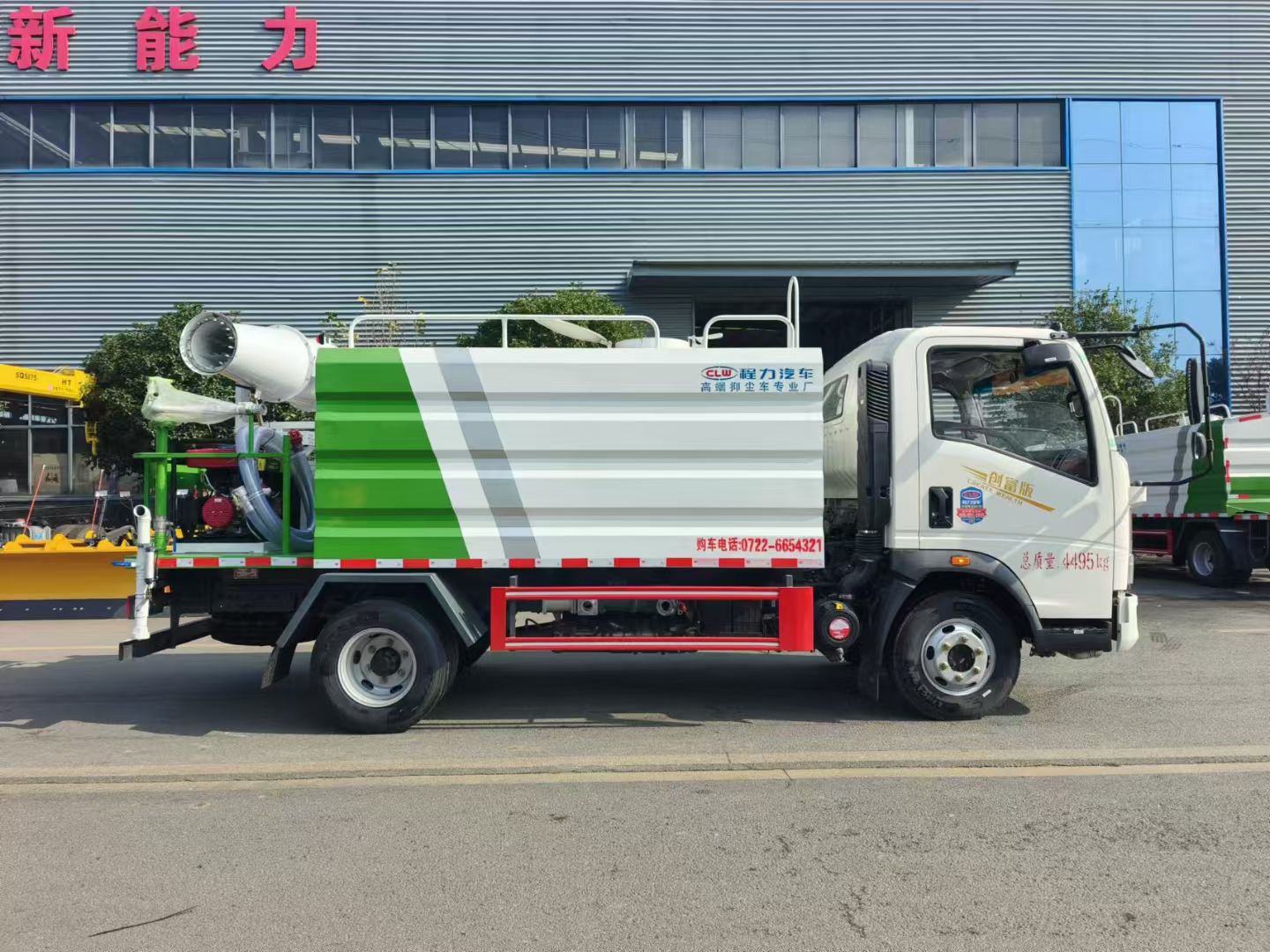

More views of the actual vehicle
