New Dongfeng dedicated D3S 12 m³ greening sprinkler truck — a Windsor White semi-sleeper cab over a silver-gray tank with the 'greening sprinkler' livery and red/white reflective guards.
The 12 m³ Q235 carbon-steel tank (4 mm shell, 3 mm baffles, 5 mm heads) uses the 3.0 anti-corrosion coating process with internal anti-wave baffles for impact resistance and long-term rust protection.
Product overview
Announcement Parameters
- Vehicle Name: Chengliwei Dongfeng dedicated D3S greening sprinkler truck
- Vehicle Model: CLW5160GPSZD6
- Chassis Model: DFV1163GP6DJ
- Vehicle Type: Dongfeng dedicated D3S medium 12 m³ greening sprinkler (China VI)
- Body Style: Circular carbon-steel anti-corrosion tank, anti-slip tail platform, multi-circuit spray piping
- Tank Volume: 12 m³
- Tank Material: Q235 carbon steel; shell 4 mm, baffles 3 mm, heads 5 mm; 3.0 anti-corrosion coating
- Roof Standard Equipment: Manhole water inlet, tail-adjustable cannon, anti-slip platform, suction hose storage bracket
- Appearance: Windsor White cab, silver-gray tank with blue-green trim, 'Greening Sprinkler Truck' side lettering, red/white reflective guards

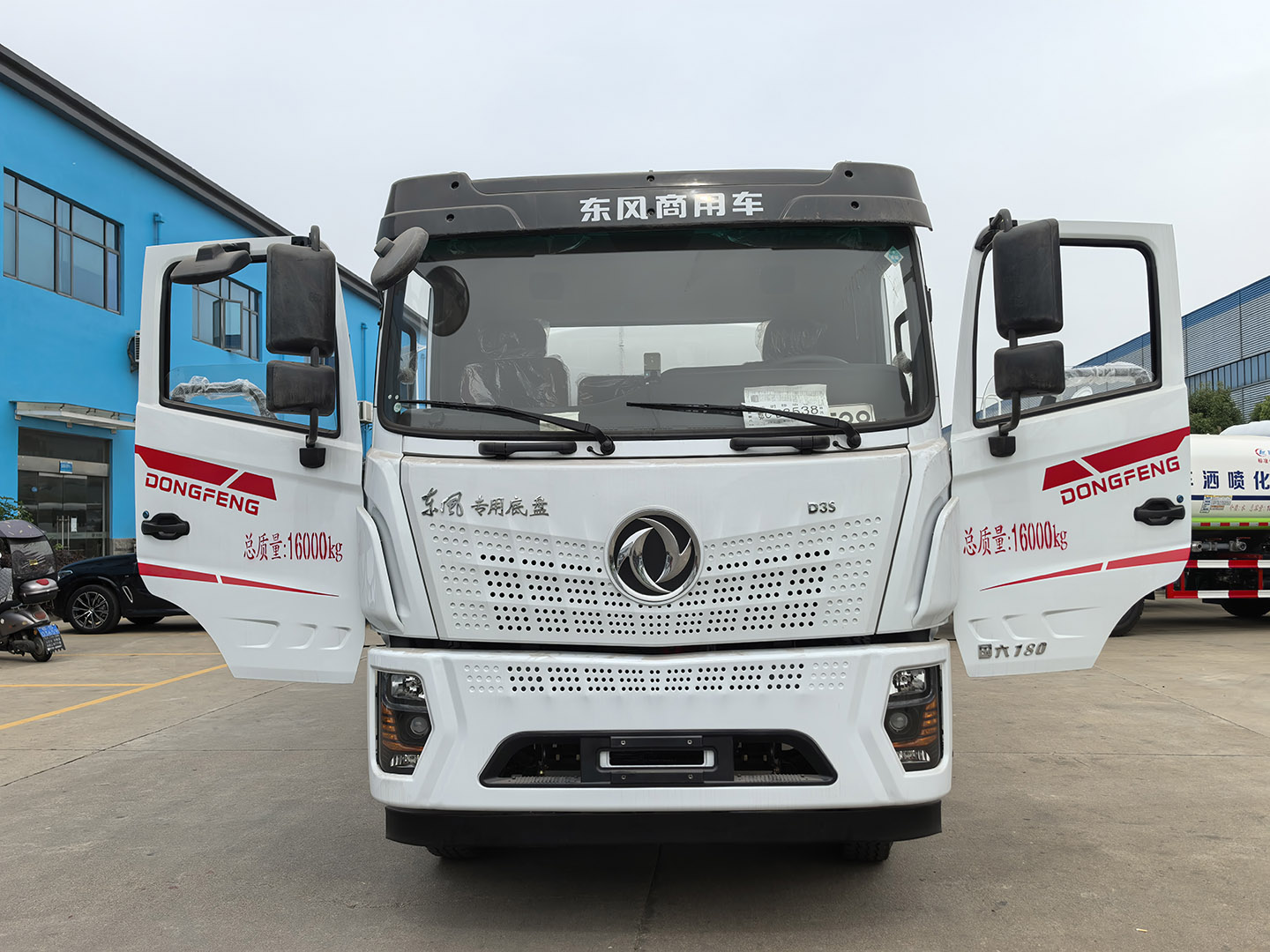

- Access: D3S factory side doors, anti-slip tail platform, rear maintenance ladder
- Spray Layout: Front flushing, dual-side sprays, rear sprinklers with large-bore straight-through ball valves on independent circuits
Chassis Configuration
- Chassis Brand: Dongfeng Commercial Vehicle
- Cab: Dongfeng dedicated D3S Windsor White single semi-sleeper cab
- Wheelbase: 3,950 mm
- Engine: Yuchai 180 hp China VI diesel engine
- Transmission: Shaanchi FAST small-8 gearbox with factory power take-off
- Tires: 9.00R20/16PR heavy-load steel radial tires
- Fuel Tank: 160 L steel fuel tank
- Frame / Axles: 250 double-layer frame; front axle 2.7 t, rear axle 8 t

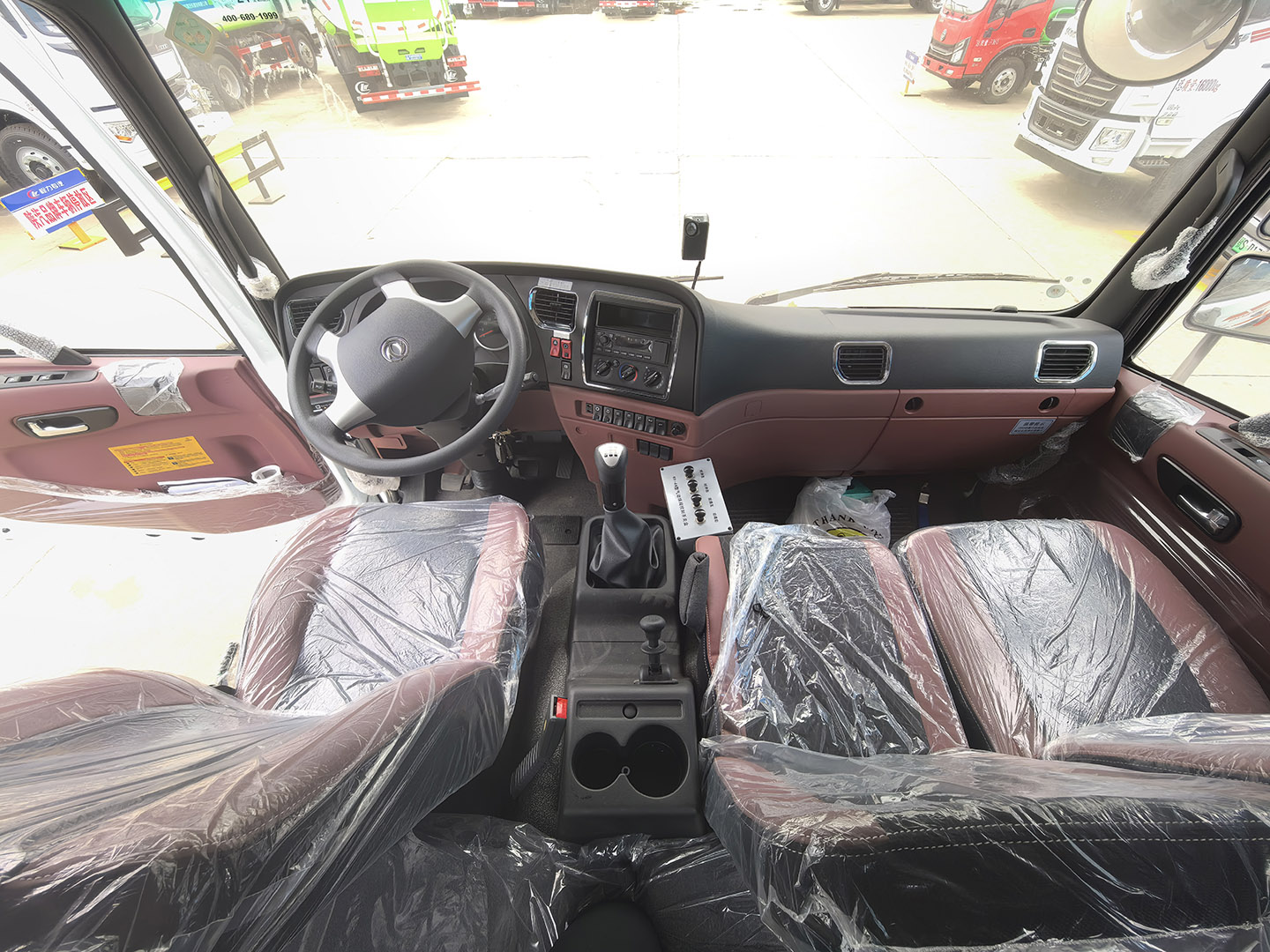

- Interior Standard: Power windows, remote central locking, factory heating/cooling A/C, air-suspension seat, multifunction steering wheel
- Brake System: ABS anti-lock braking, air parking brake
- Fuel Type: Diesel
- Emission Standard: China VI
- Advantage: Medium chassis with strong power and 12 m³ tank suits large-area watering, greening irrigation and dust suppression on main roads and large parks
Body Configuration
- Tank Structure: 12 m³ Q235 carbon-steel atmospheric tank; 4 mm shell, 3 mm baffles, 5 mm heads; 3.0 anti-corrosion coating with anti-wave baffles
- Core Pump & Piping: High-power dedicated sprinkler pump with pump-in/pump-out circuit, large-bore straight-through ball valves and 76 mm thickened main line for high stable flow; optional all-aluminum cast pipe fittings (weld-free, leak-free, light and easy to service)
- Multi-Function Spray: Front opposed high-pressure road flushing, dual-side sprays for green-belt irrigation, rear broad dust suppression; tail high-pressure cannon with jet/rain-mist modes; independent valves per circuit

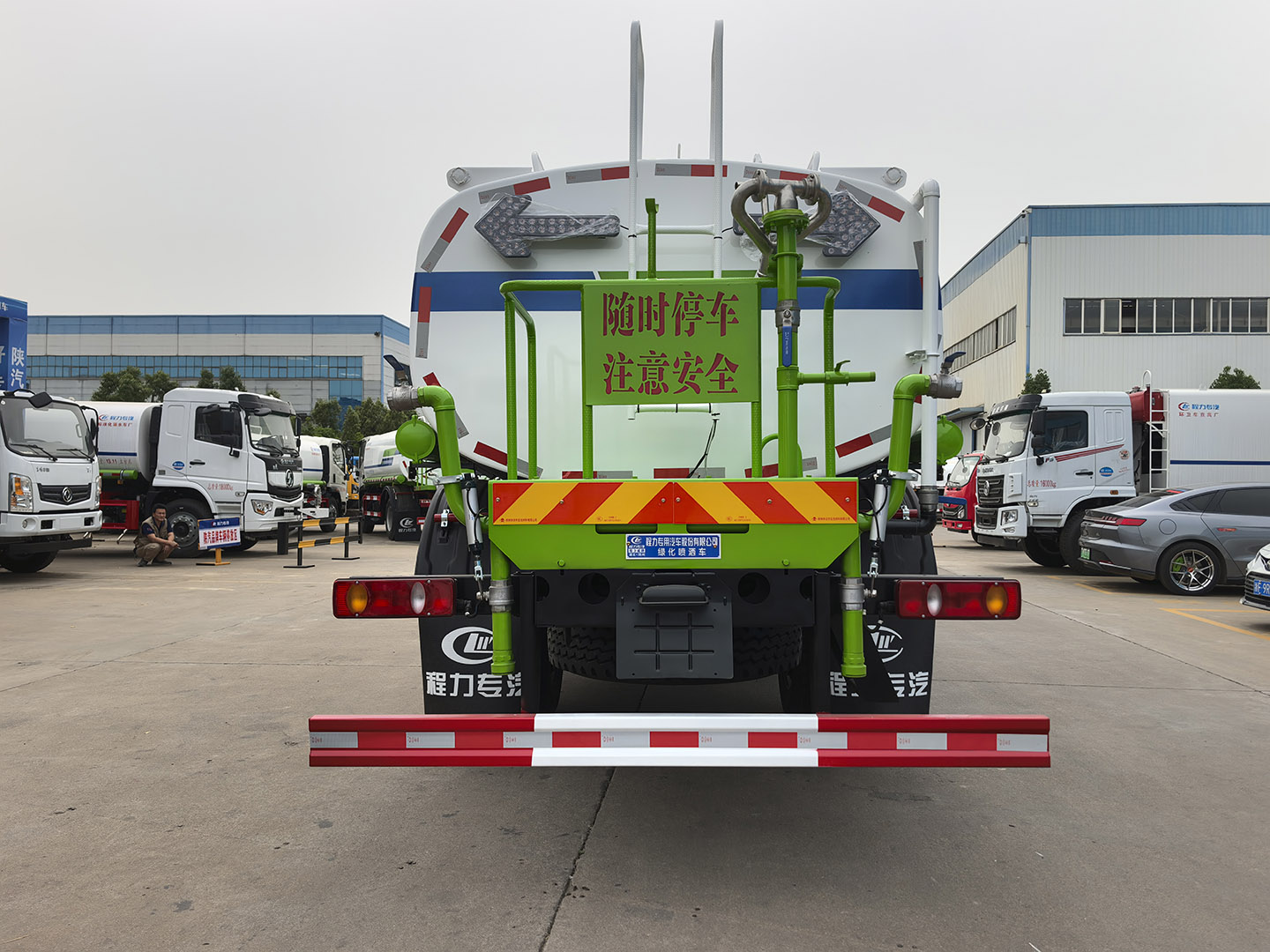

- Work Platform: Widened anti-slip tail platform with safety rails; pre-drilled mist-cannon interface for an optional dust-suppression unit
- Applications: Municipal road washing, dust suppression, green-belt irrigation, park/scenic maintenance, site environmental dust control and emergency fire water supply for sanitation, landscaping and property units

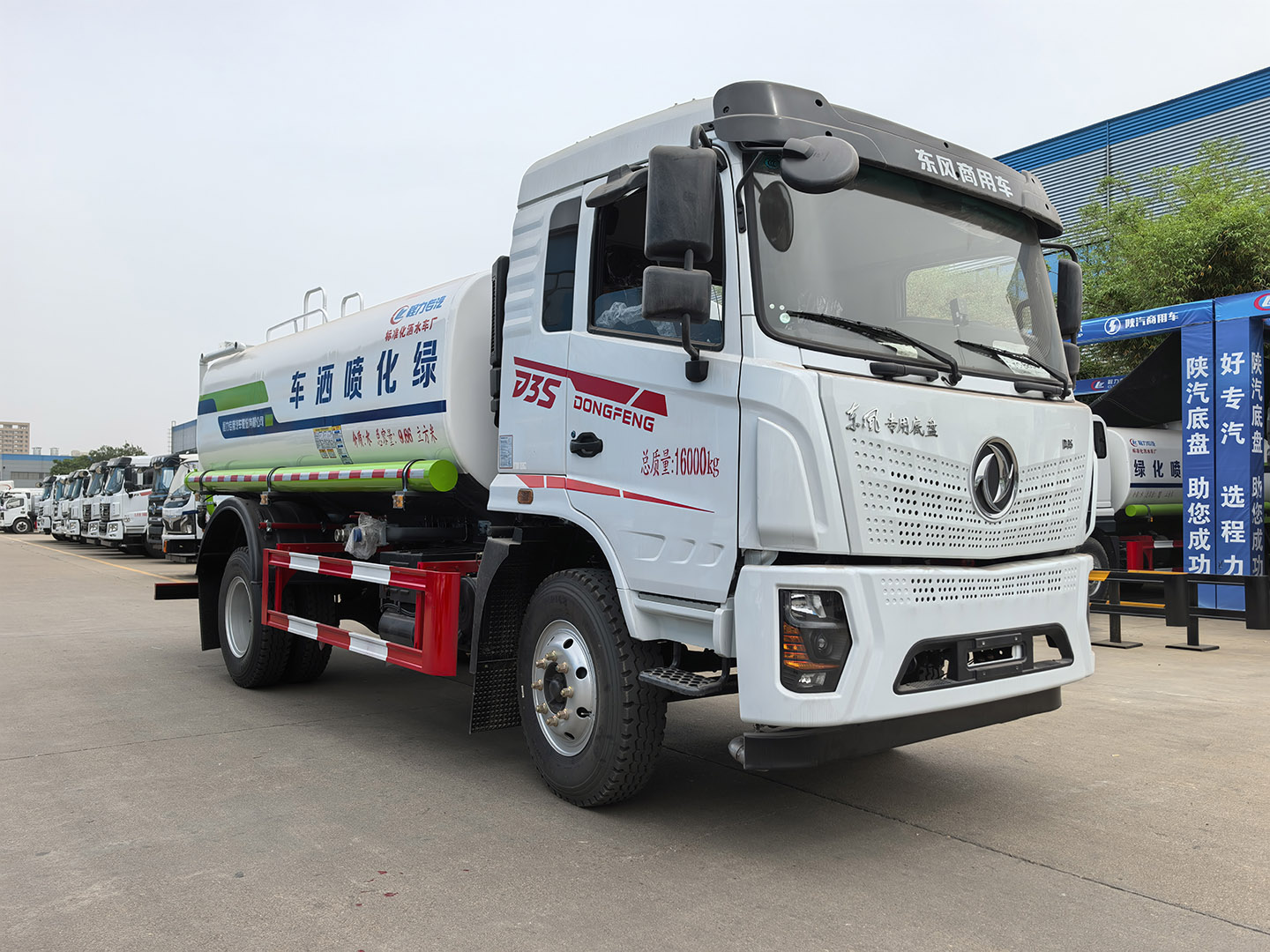

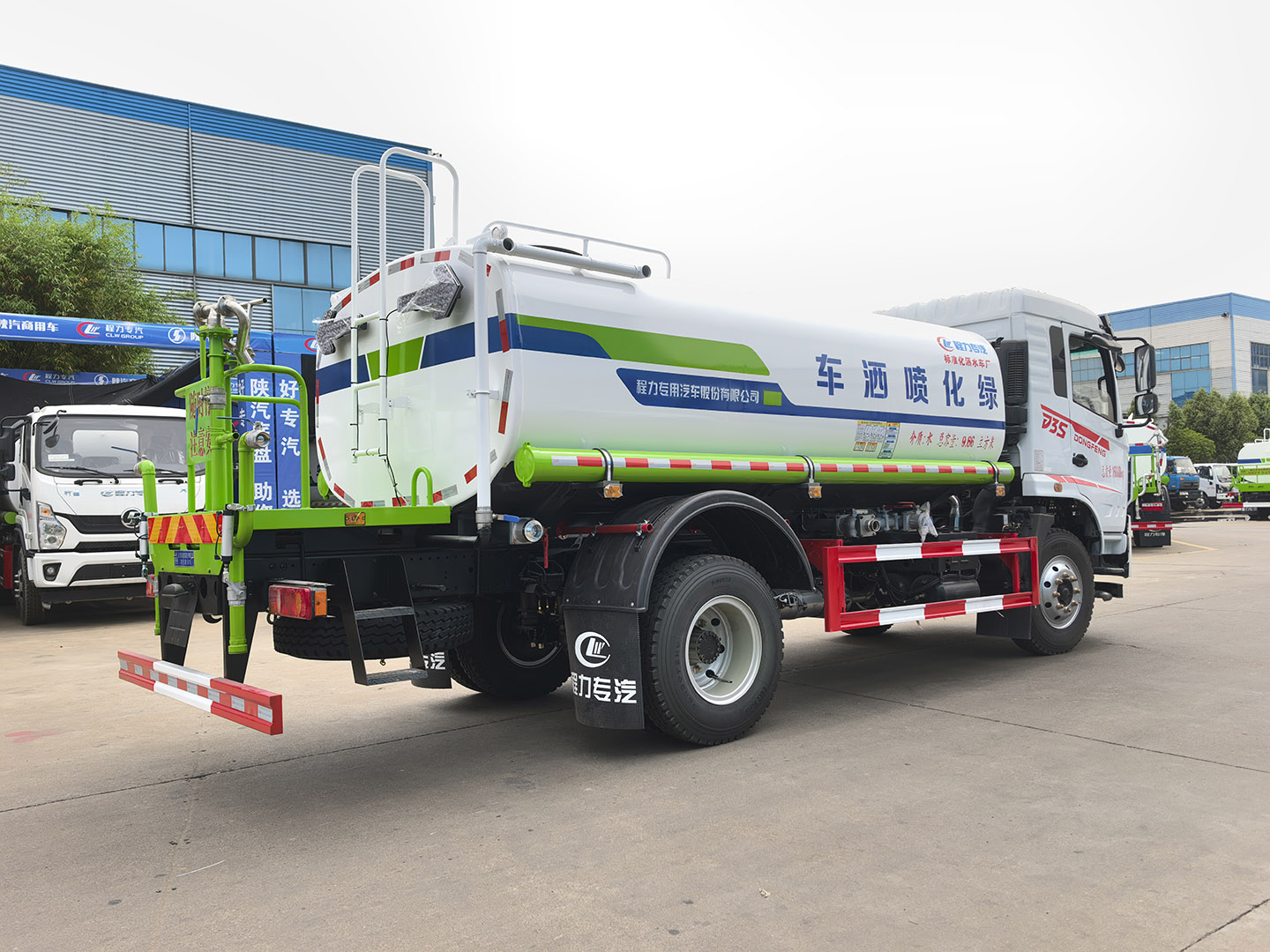

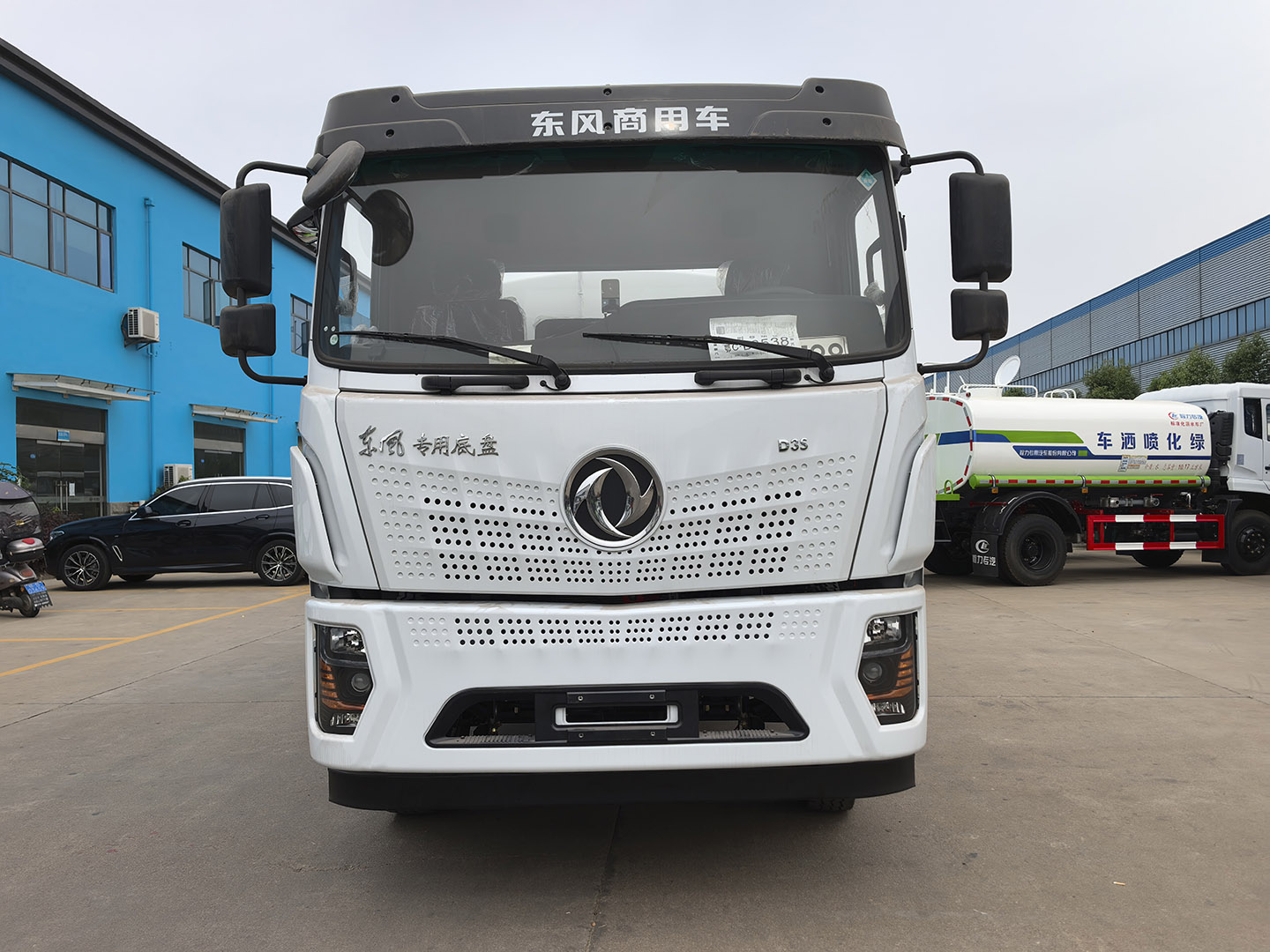

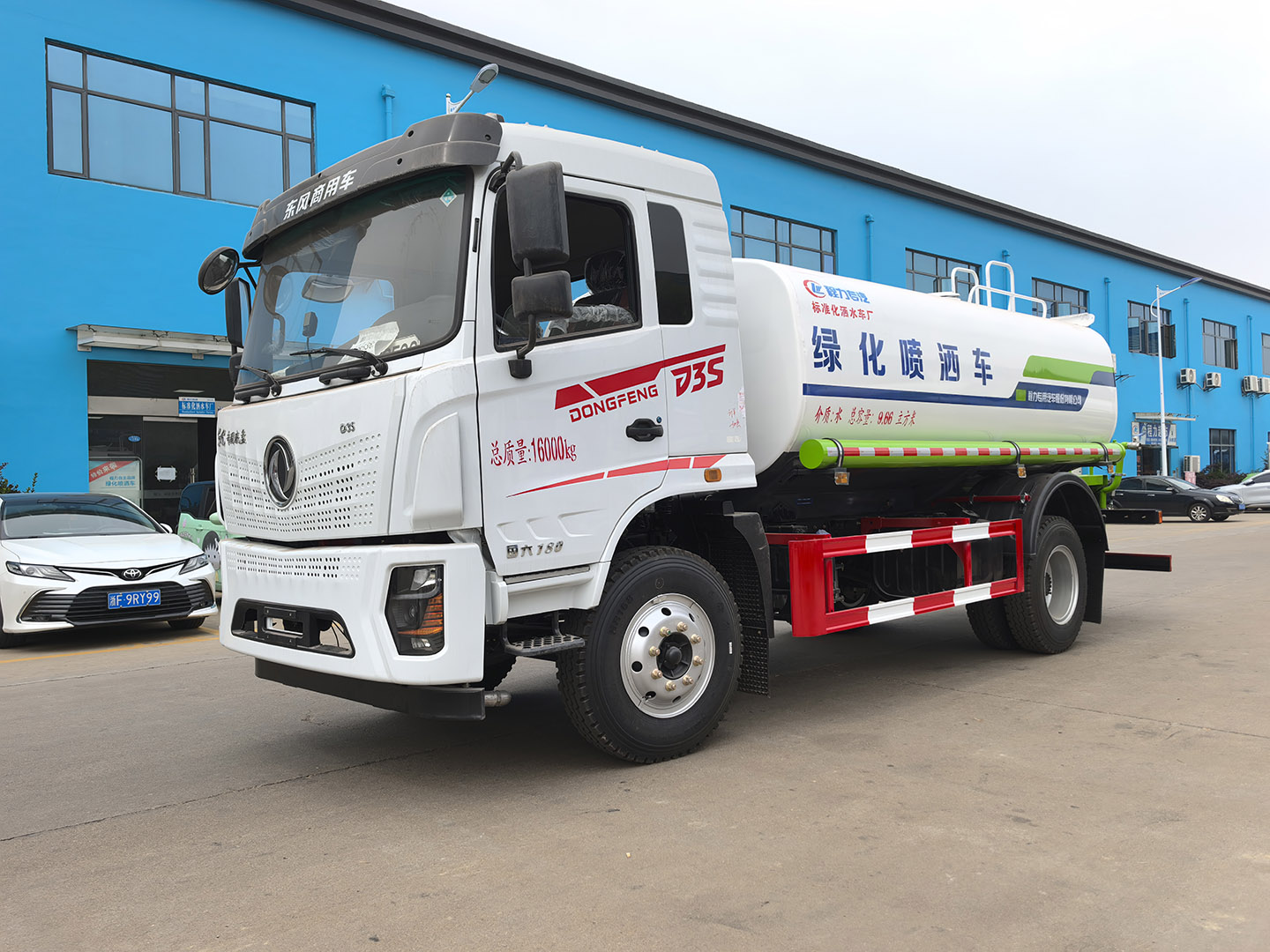

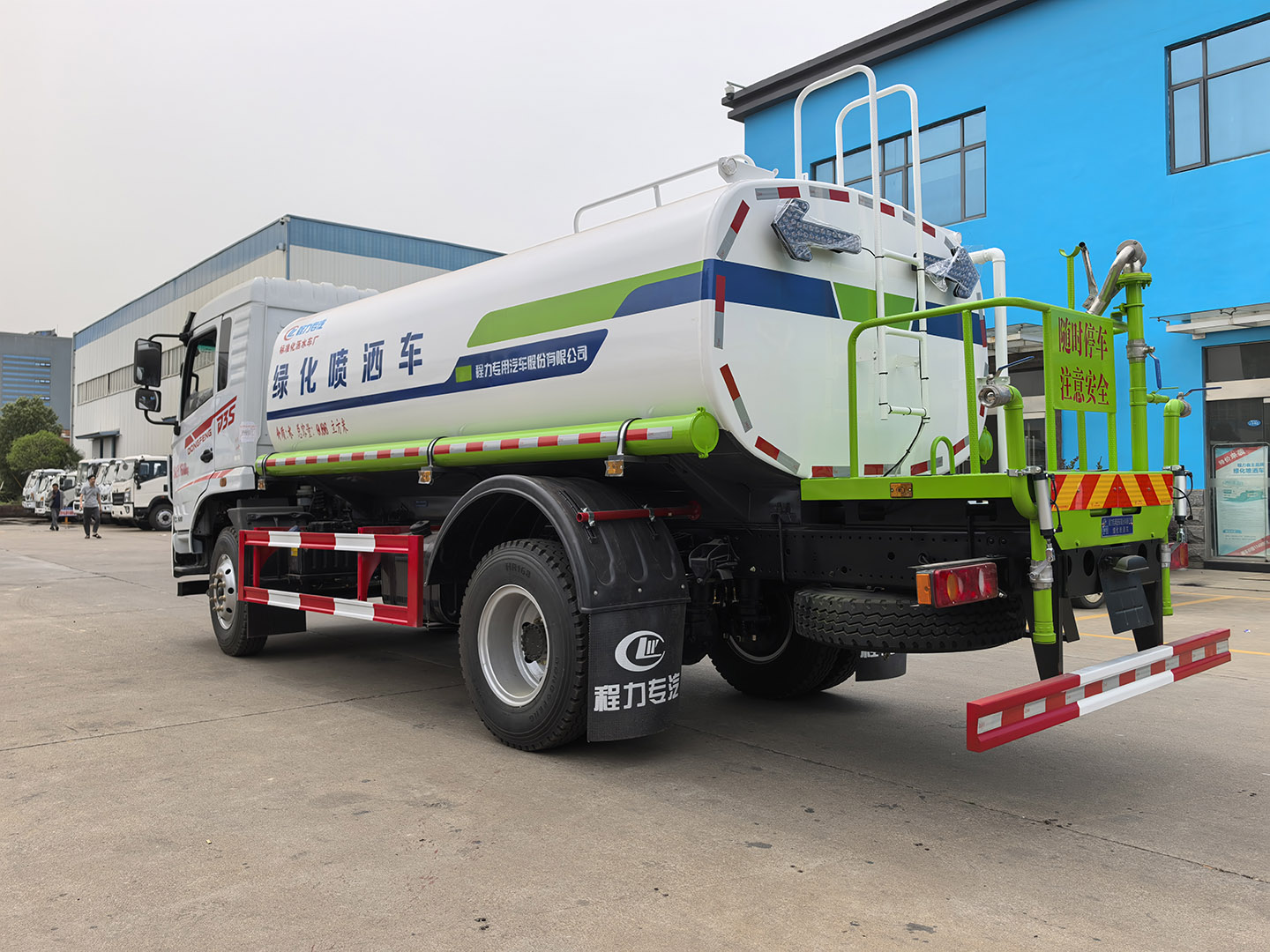

More views of the actual vehicle
More views of the actual vehicle
More views of the actual vehicle
More views of the actual vehicle
More views of the actual vehicle
