Chengliwei 12.8 m³ medium sprinkler truck built on the Foton Auhang semi-sleeper chassis — a large-capacity road watering, dust-suppression and greening irrigation machine for main roads, parks and factory areas.
The circular atmospheric tank uses 4 mm shell and 5 mm head plates with two internal anti-wave baffles and full anti-corrosion treatment for stable, long-life service.
Product overview
Announcement Parameters
- Vehicle Name: Chengliwei Foton Auhang 12.8 m³ sprinkler truck
- Vehicle Model: CLW5165GSSBBS
- Vehicle Type: Foton Auhang semi-sleeper medium 12.8 m³ sprinkler (China VI)
- Body Style: Circular atmospheric sprinkler tank, widened tail work platform, multi-direction spray piping
- Tank Volume: 12.8 m³
- Tank Material: 4 mm shell steel plate, 5 mm thickened heads, two internal anti-wave baffles
- Roof Standard Equipment: High-level self-fill port, tail-adjustable water cannon, widened anti-slip work platform, suction hose storage
- Appearance: White cab + silver-gray tank with blue-green trim lines; red/white reflective guards on both chassis sides
- Access: Cab side doors; tail anti-slip work platform and maintenance ladder
- Spray Layout: Front opposed flushing nozzles, dual-side sprays, rear sprinklers, tail-adjustable cannon with independent water-circuit valves
Chassis Configuration
- Chassis Brand: Foton
- Cab: Foton Auhang semi-sleeper cab
- Wheelbase: 3,950 mm
- Engine: Yuchai 180 hp China VI diesel engine
- Transmission: FAST 8-speed hi/lo manual gearbox
- Tires: 9.00R20/16PR heavy-load steel radial tires
- Fuel Tank: 130 L steel fuel tank
- Frame / Axles: 861×232 double-layer frame (6+4 plates); front axle 3.2 t, rear axle 8 t
- Interior Standard: Power windows, central locking, clutch servo, factory heating/cooling A/C, dual 100 Ah maintenance-free batteries
- Brake System: ABS anti-lock braking, air parking brake
- Fuel Type: Diesel
- Emission Standard: China VI
- Advantage: Medium-duty chassis with 12.8 m³ large tank suits long-range watering, dust suppression and greening irrigation on main roads, parks and plants
Body Configuration
- Tank Structure: 12.8 m³ steel atmospheric tank; 4 mm shell, 5 mm thickened heads, two internal anti-wave baffles to reduce water surge; anti-corrosion treatment
- Core Pump System: 60-90 type dedicated sprinkler pump with pump-in/pump-out dual water circuit; standard 60-type fire quick-fill coupling and two full-length suction hoses for fast water intake
- Spray System: Front opposed flushing nozzles, dual-side sprays, rear sprinklers; tail cannon adjustable between jet and rain-mist modes; independent valves allow single-group operation
- Work Platform: Widened anti-slip tail platform with guardrails; pre-drilled interface for optional dust-suppression mist cannon set
- Applications: City road washing, dust suppression, garden irrigation, site dust control, emergency fire water supply and road de-icing/snow maintenance for municipal, estate and site environmental units

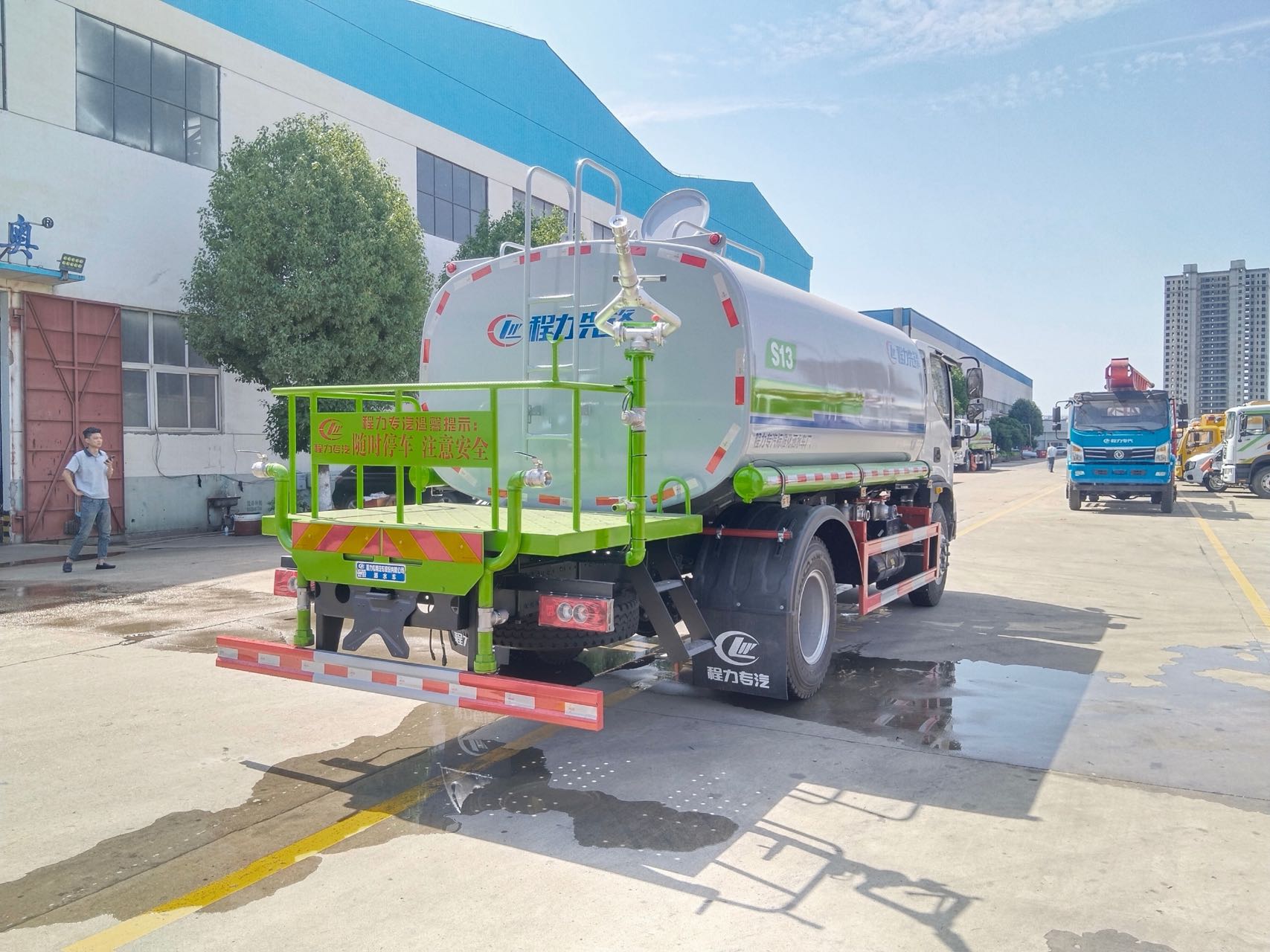

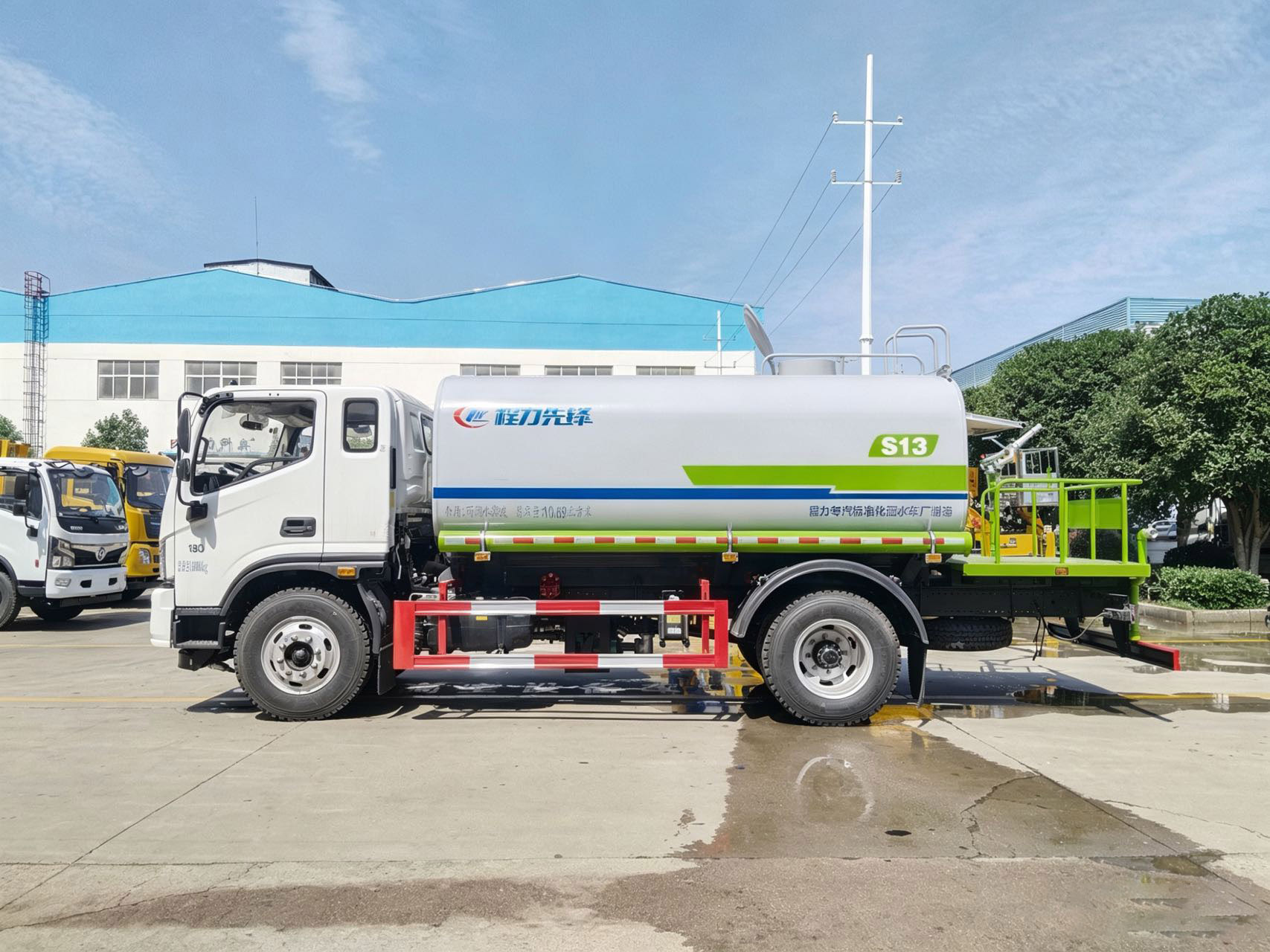

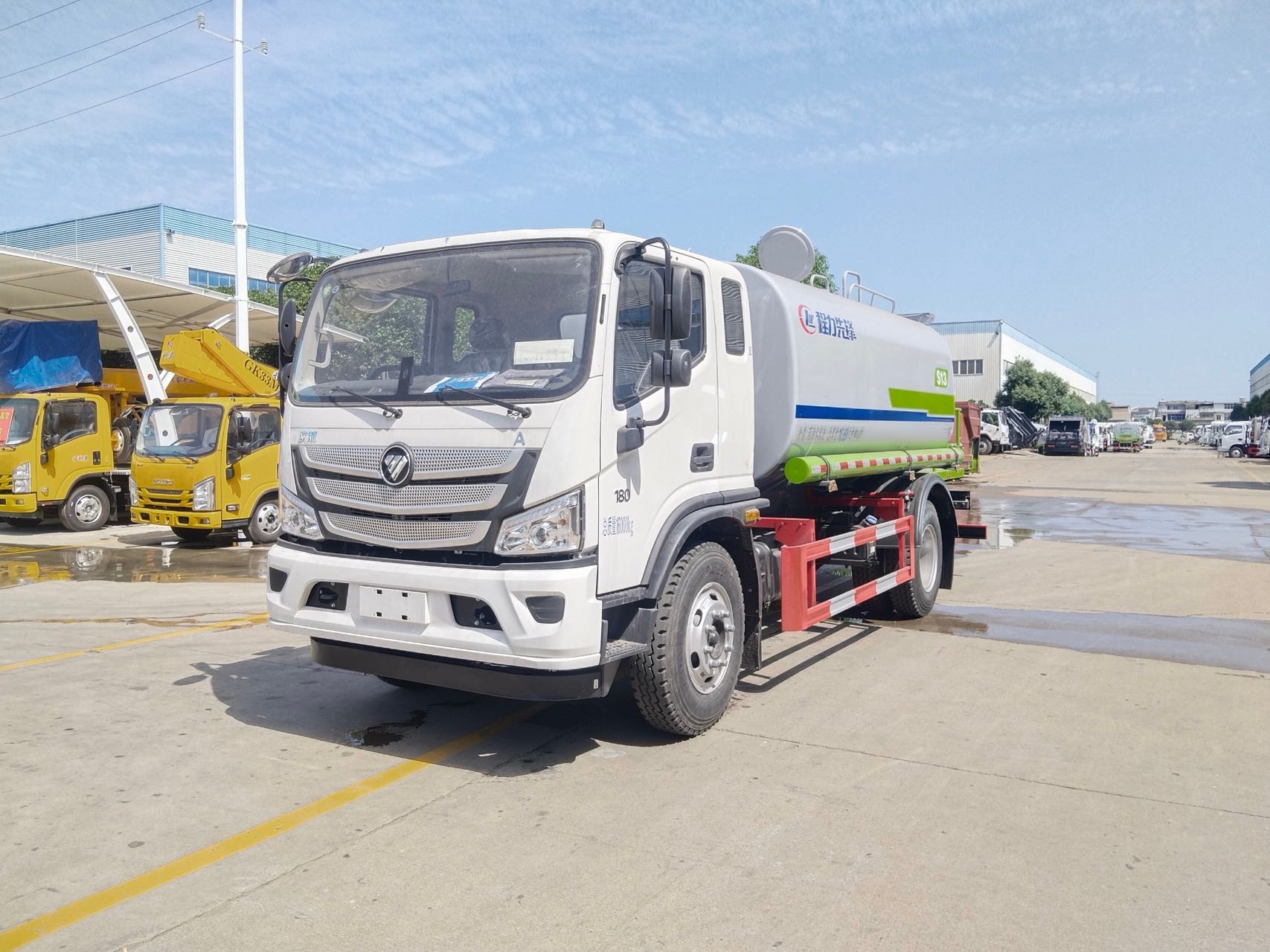

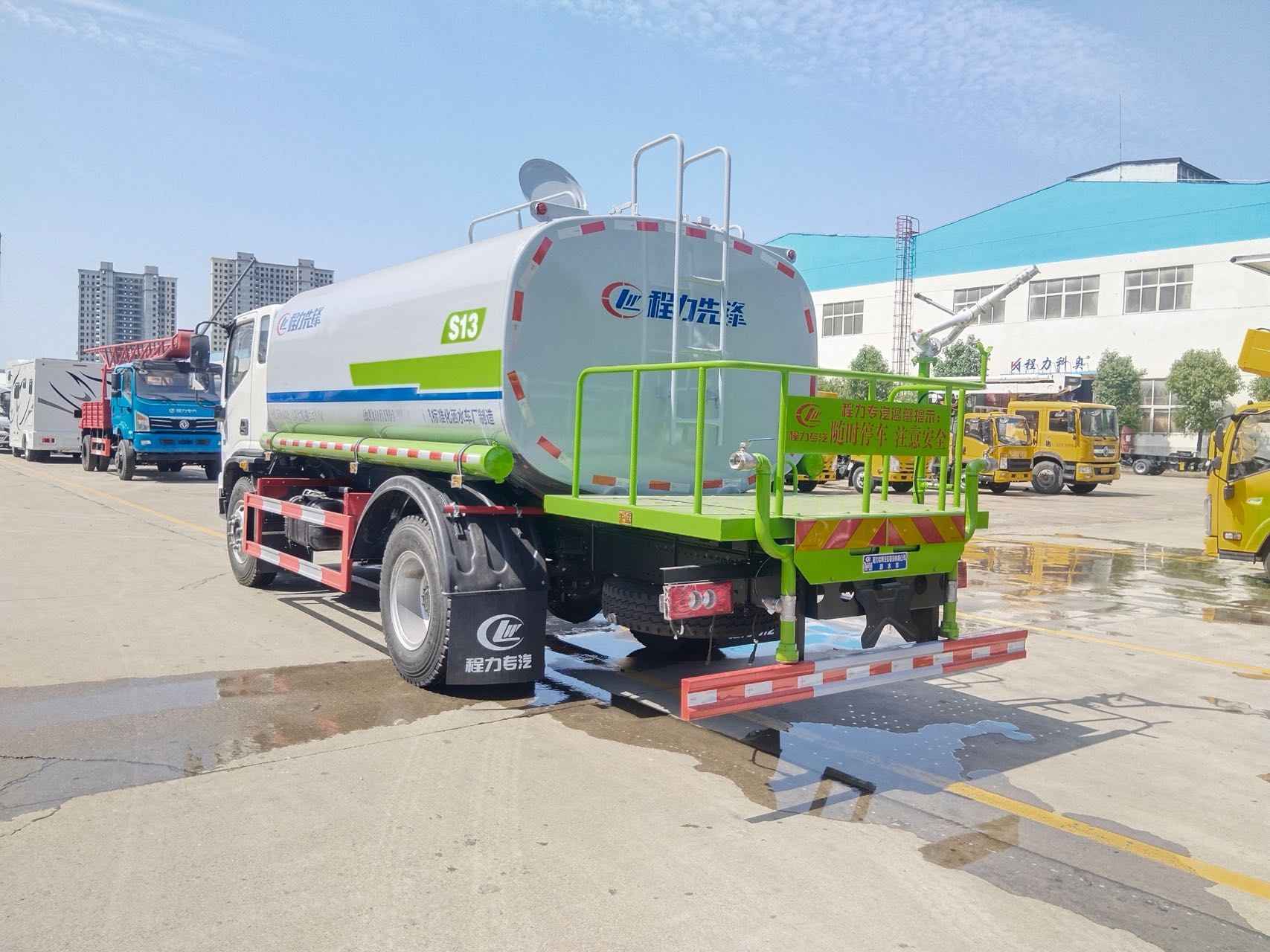

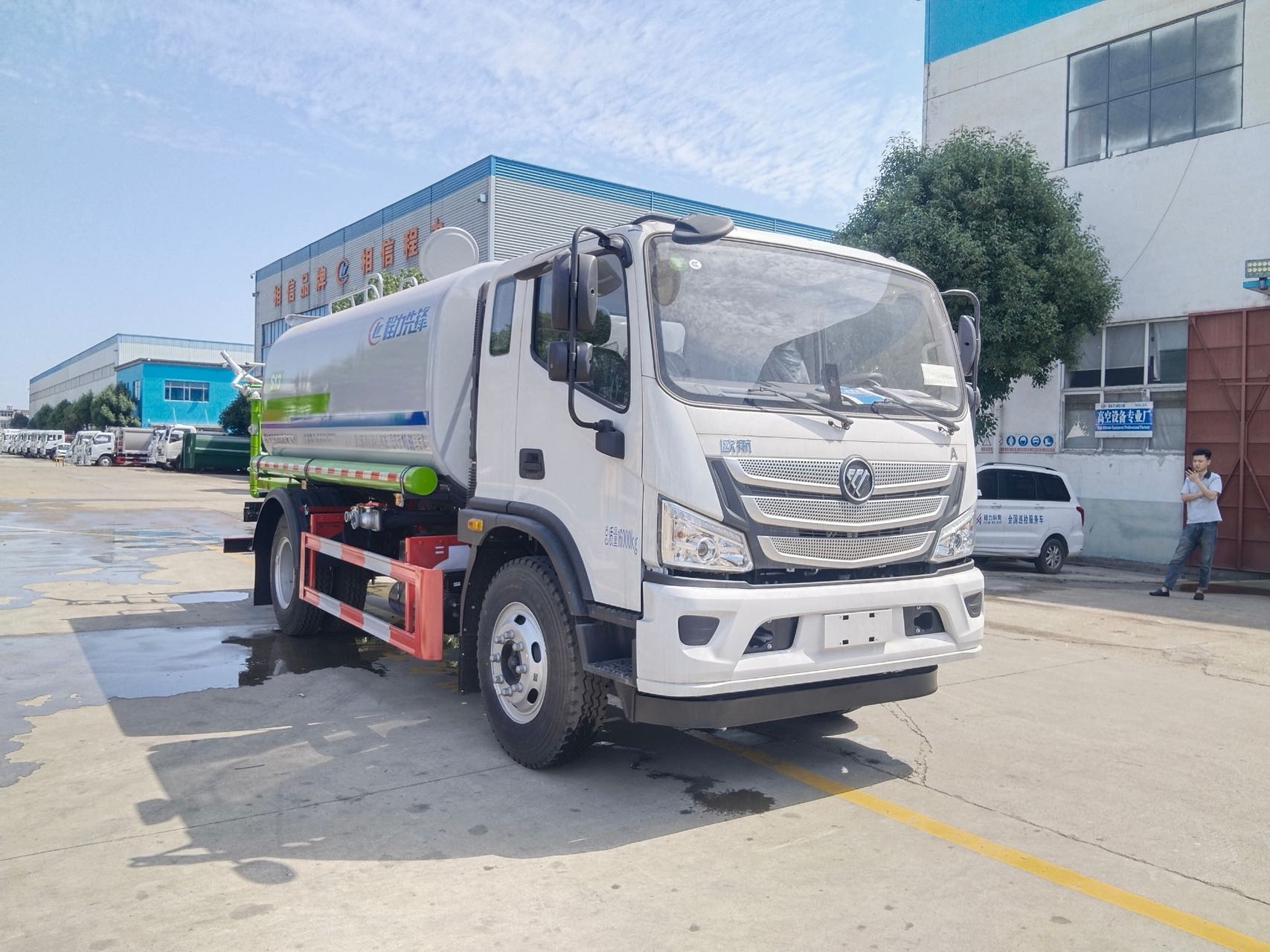

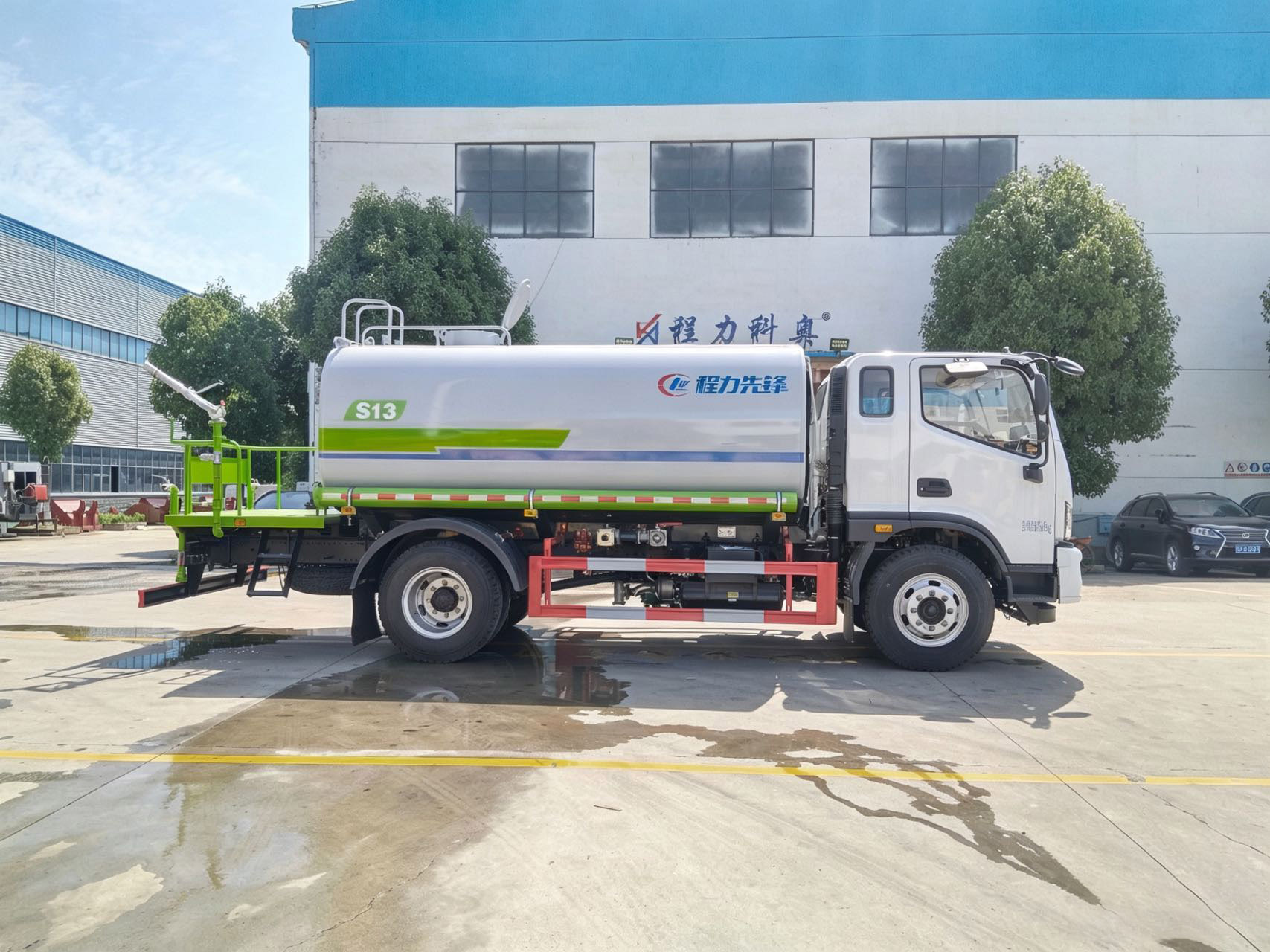

More views of the actual vehicle
More views of the actual vehicle
