Foton Ollin Leader 6 China VI Refrigerated Truck BJ5046XLC9JBA-02

Vehicle Model

BJ5046XLC9JBA-02

Chassis Model

Foton Ollin Leader 6 dedicated chassis (4×2)

Drive Type

4×2 (single rear axle)

Emission Standard

China VI

GVWR

4,495 kg (blue-plate light-duty truck)

Curb Weight

Approx. 2,800 kg (reference, subject to the official announcement)

Rated Load Capacity

Approx. 1,500 kg (reference, subject to the official announcement)

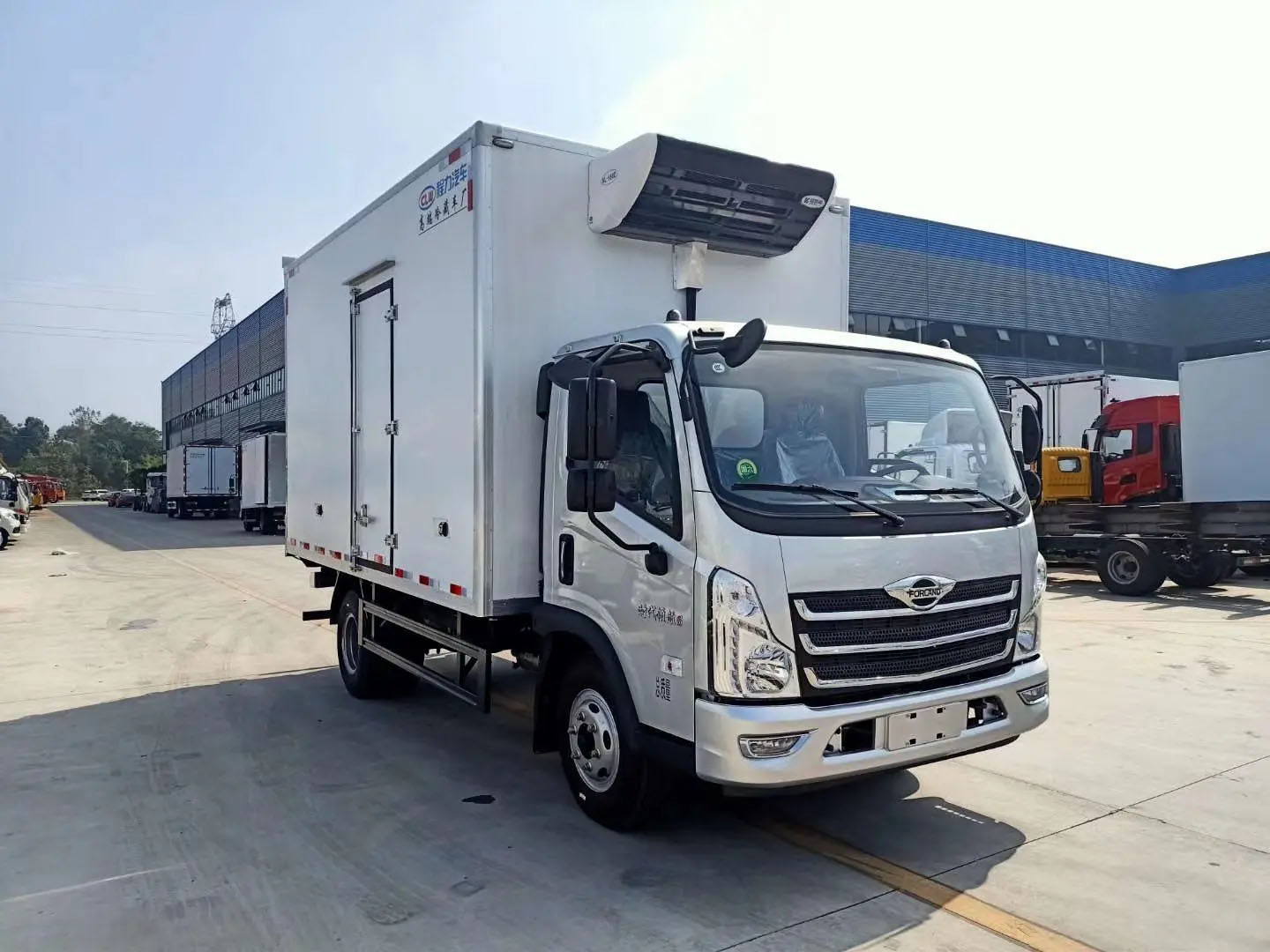

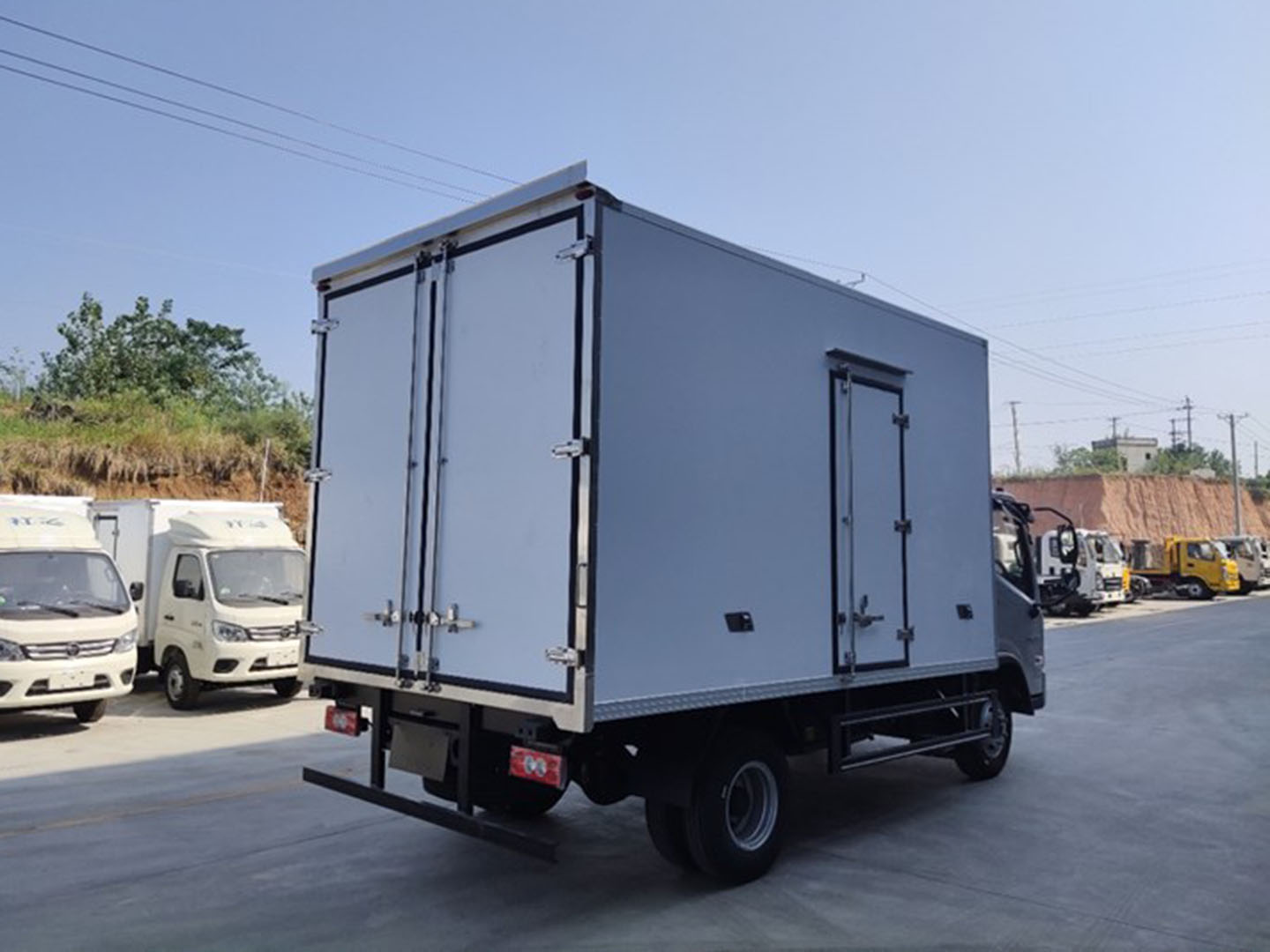

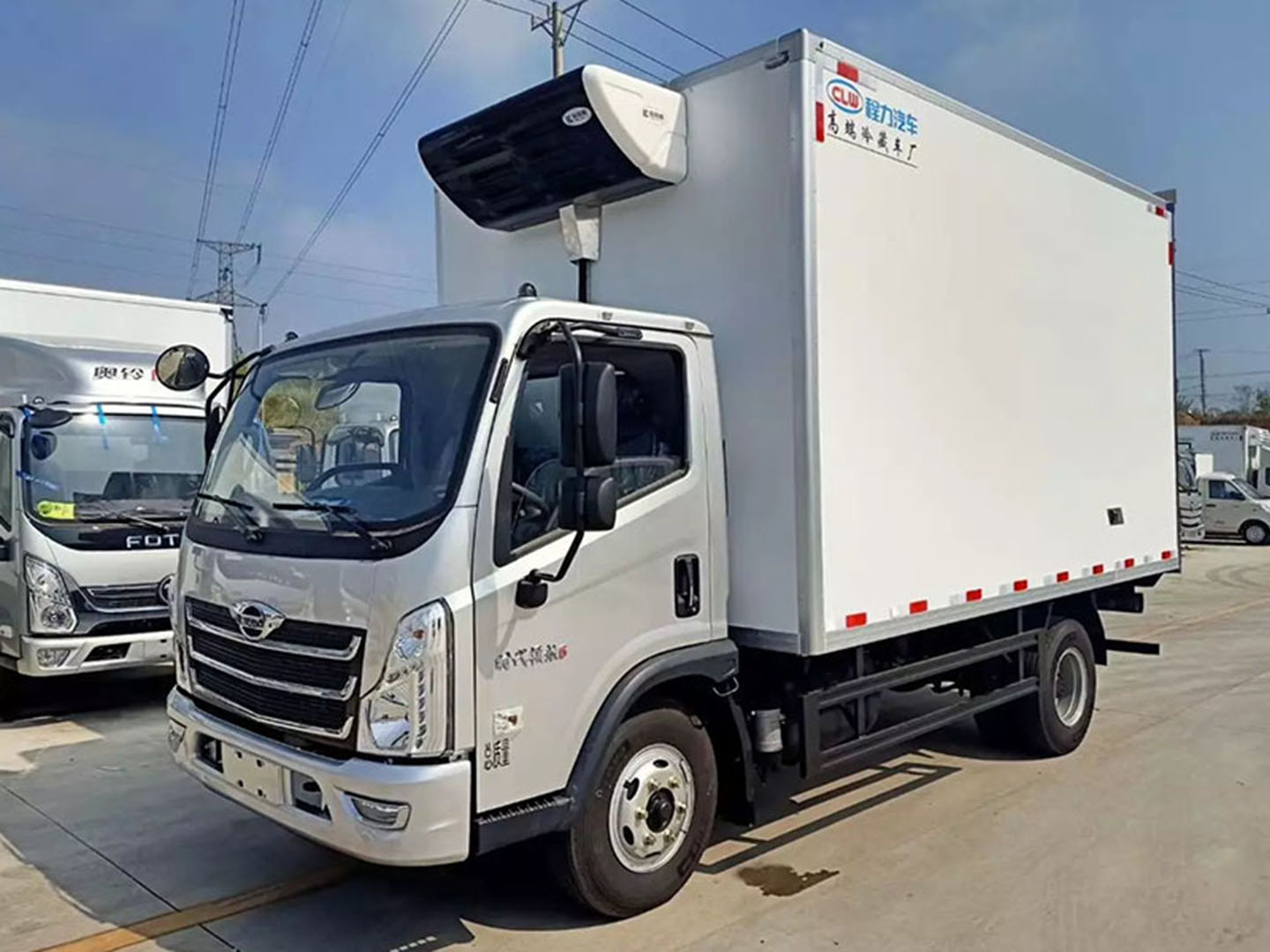

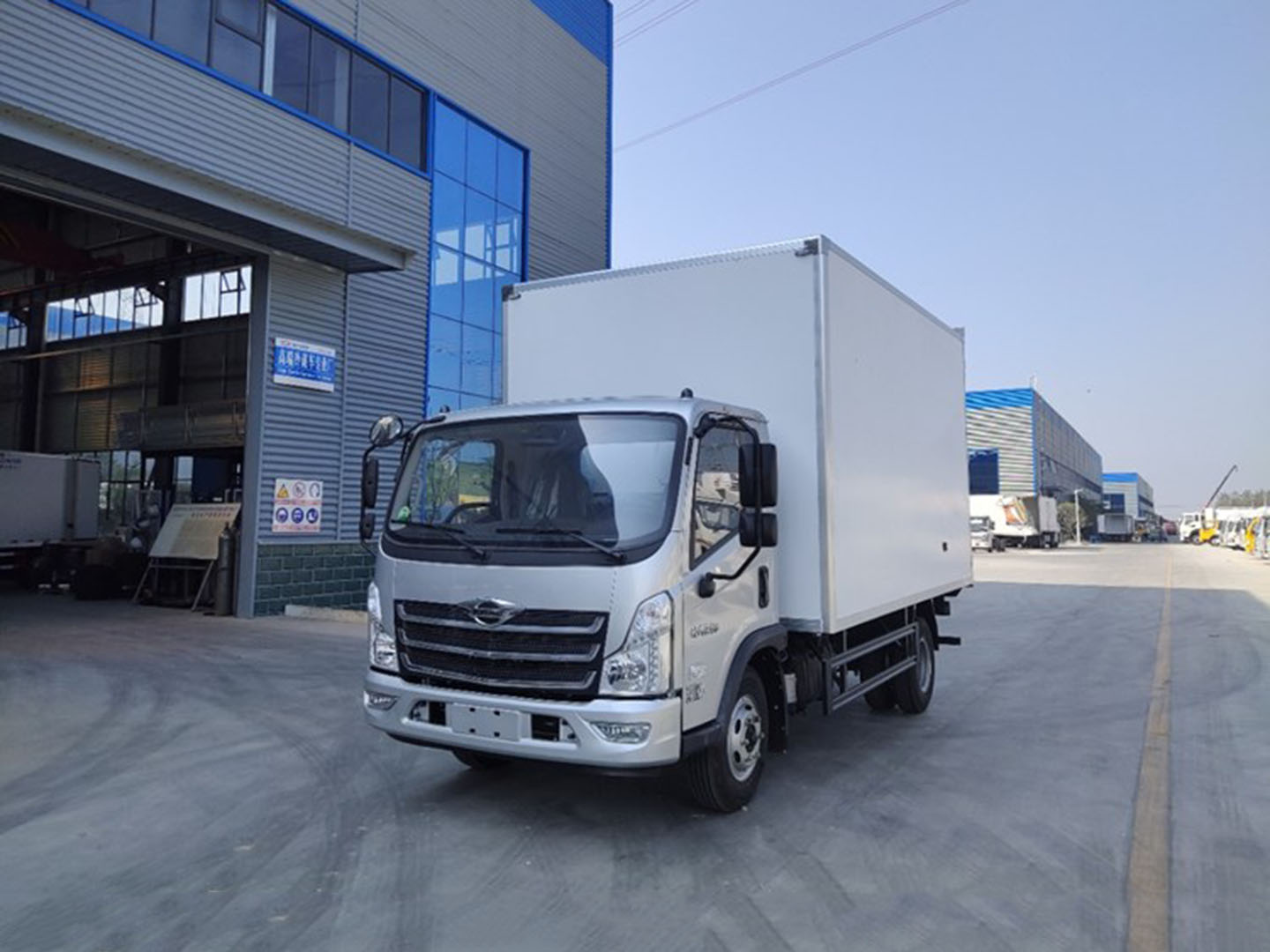

The Foton Ollin Leader 6 China VI refrigerated truck — product photos and specifications of this light-duty blue-plate box refrigerated truck.

The Leader 6 features a wide 2.1 m cab, 3,360 mm wheelbase, Weichai 160 hp engine, WLY 6-speed gearbox, 5 t rear axle, 7.50R16 steel radial tires, air-cutoff brake, power steering, EBP fuel-saving system, central locking and electric windows. Insulated box dimensions: 4,080×2,450×2,300 mm.

Product overview

Announcement Parameters

Vehicle Model: BJ5046XLC9JBA-02
Chassis Model: Foton Ollin Leader 6 dedicated chassis (4×2)
Drive Type: 4×2 (single rear axle)
Emission Standard: China VI
GVWR: 4,495 kg (blue-plate light-duty truck)
Curb Weight: Approx. 2,800 kg (reference, subject to the official announcement)
Rated Load Capacity: Approx. 1,500 kg (reference, subject to the official announcement)

Chassis Configuration

Engine: Weichai WP3N diesel engine (160 hp)
Transmission: WLY 6-speed gearbox, with air-cutoff brake and power steering
Wheelbase / Tires: 3,360 mm wheelbase; 7.50R16 steel radial tires
Standard Equipment: Factory A/C, electric windows & doors, central locking, EBP fuel-saving system, 5 t rear axle, wide 2.1 m cab

Body Configuration

Box Dimensions: Internal box dimensions: 4,080×2,450×2,300 mm; effective volume approx. 23 m³
Body Material: FRP inner/outer skins with high-density polyurethane insulation core, anti-slip patterned aluminum floor, aluminum-profile edging, stainless steel corners/locks/hinges
Refrigeration Unit: Optional domestic or imported unit: fresh-keeping -5 °C / frozen -15 °C
Door Configuration: Rear double doors + side door, with LED interior lighting
Optional Features: Box ventilation chutes, meat-hook rails, temperature/humidity recorder, hydraulic tail lift, leak-proof reinforcement, etc.

Vehicle Model	BJ5046XLC9JBA-02
Chassis Model	Foton Ollin Leader 6 dedicated chassis (4×2)
Drive Type	4×2 (single rear axle)
Emission Standard	China VI
GVWR	4,495 kg (blue-plate light-duty truck)
Curb Weight	Approx. 2,800 kg (reference, subject to the official announcement)
Rated Load Capacity	Approx. 1,500 kg (reference, subject to the official announcement)
