Chengli Shacman Pure Electric Refrigerated Truck (YTQ5042XLCDEEV331)

The Chengli Shacman pure electric refrigerated truck (YTQ5042XLCDEEV331) is a 4×2 new-energy cold-chain vehicle with an 81 kWh CATL LiFePO₄ battery, an insulated FRP/PU box of approx. 18 m³ and an optional DC-powered refrigeration unit (-5 °C fresh / -15 °C frozen). With a GVWR of 4,495 kg (blue-plate light-duty truck) and rated payload of Approx. 1,000 kg (reference, subject to official announcement), it is ideal for frozen foods, dairy, vegetables and fruits.

Vehicle Model

YTQ5042XLCDEEV331
Chassis Model

Shacman commercial pure-electric dedicated chassis (4×2)
Drive Type

4×2 (single rear axle)
Power Type

Pure electric (new energy)
GVWR

4,495 kg (blue-plate light-duty truck)
Curb Weight

Approx. 3,200 kg (reference, subject to official announcement)
Rated Load Capacity

Approx. 1,000 kg (reference, subject to official announcement)
Inquiry

The Shacman pure-electric refrigerated truck is a new-energy cold-chain delivery vehicle (4×2 single rear axle) purpose-built for transporting frozen foods, dairy products, fresh produce, vegetables and fruits on urban and inter-city routes. It pairs an 81 kWh CATL LiFePO4 battery pack with an insulated FRP/polyurethane box of approx. 18 m³ and an optional DC-powered refrigeration unit (-5 °C fresh / -15 °C frozen). The photos below show the actual vehicle from multiple angles, followed by the announcement parameters, chassis configuration and refrigerated body specifications.

Chengli Shacman Pure Electric Refrigerated Truck (YTQ5042XLCDEEV331)

Product overview

Announcement Parameters

  • Vehicle Model: YTQ5042XLCDEEV331
  • Chassis Model: Shacman commercial pure-electric dedicated chassis (4×2)
  • Drive Type: 4×2 (single rear axle)
  • Power Type: Pure electric (new energy)
  • GVWR: 4,495 kg (blue-plate light-duty truck)
  • Curb Weight: Approx. 3,200 kg (reference, subject to official announcement)
  • Rated Load Capacity: Approx. 1,000 kg (reference, subject to official announcement)

Chassis Configuration

  • Motor / Battery: Permanent magnet synchronous motor + CATL LiFePO₄ battery pack (approx. 81 kWh)
  • Transmission: Single-speed EV transmission with air-cutoff brake and power steering
  • Wheelbase / Tires: 3,360 mm wheelbase, 7.00R16 steel radial tires
  • Standard Equipment: Factory A/C, power windows & doors, central locking, ABS, fast & slow charging ports

Chengli Shacman Pure Electric Refrigerated Truck (YTQ5042XLCDEEV331)

Body Configuration

  • Box Dimensions: Internal box dimensions: 4,050×2,100×2,100 mm; effective volume approx. 18 m³
  • Body Material: Inner/outer FRP skins with high-density polyurethane insulation core, anti-slip patterned aluminum floor, aluminum-alloy edging, stainless steel corners/locks/hinges
  • Refrigeration Unit: Optional DC-powered refrigeration unit: fresh-keeping -5 °C / freezing -15 °C
  • Door Configuration: Rear double doors + side door, with LED interior lighting
  • Optional Features: Box ventilation chutes, temperature/humidity recorder, leak-proof reinforcement, etc.

Chengli Shacman Pure Electric Refrigerated Truck (YTQ5042XLCDEEV331)

Chengli Shacman Pure Electric Refrigerated Truck (YTQ5042XLCDEEV331)

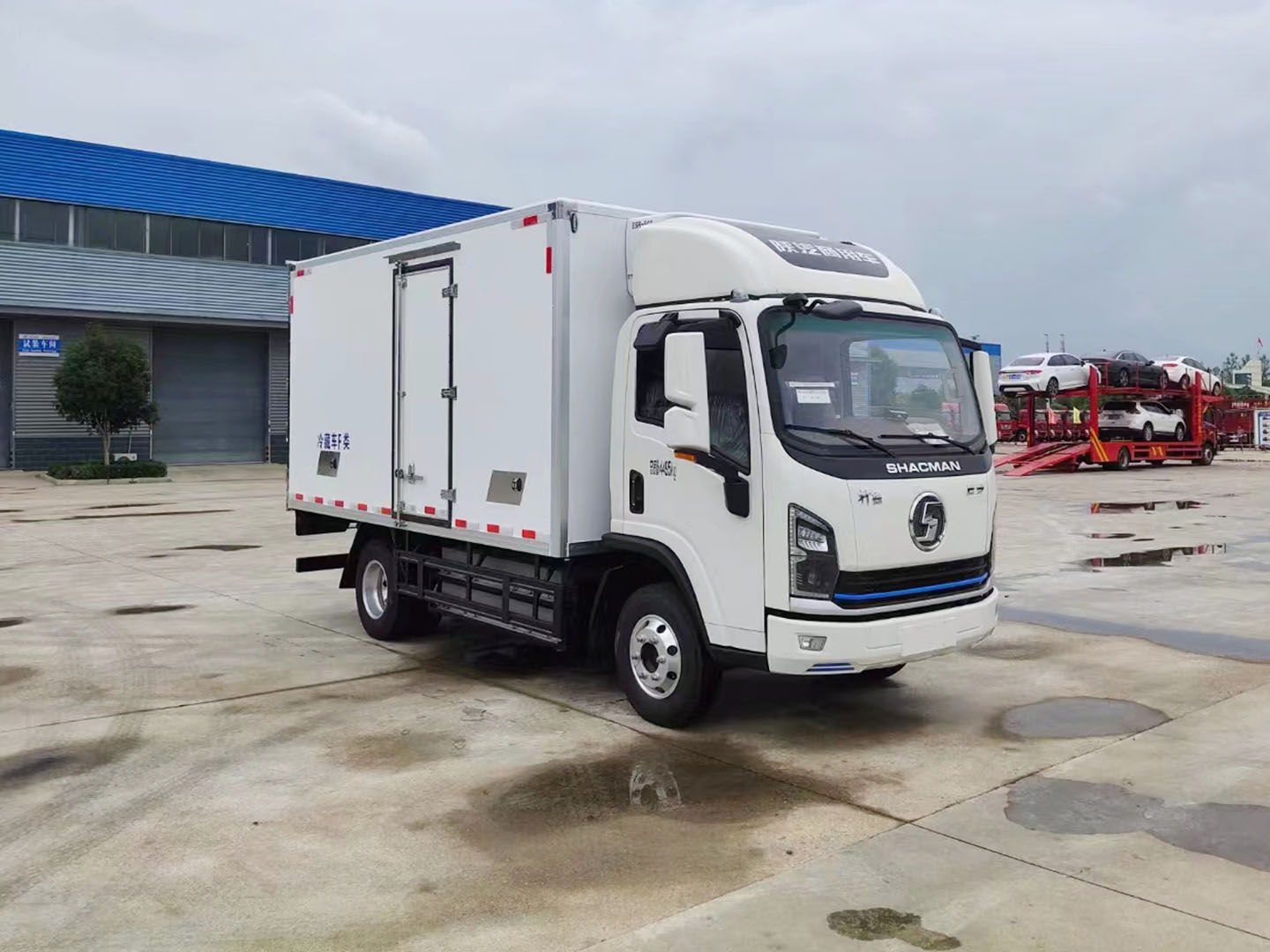

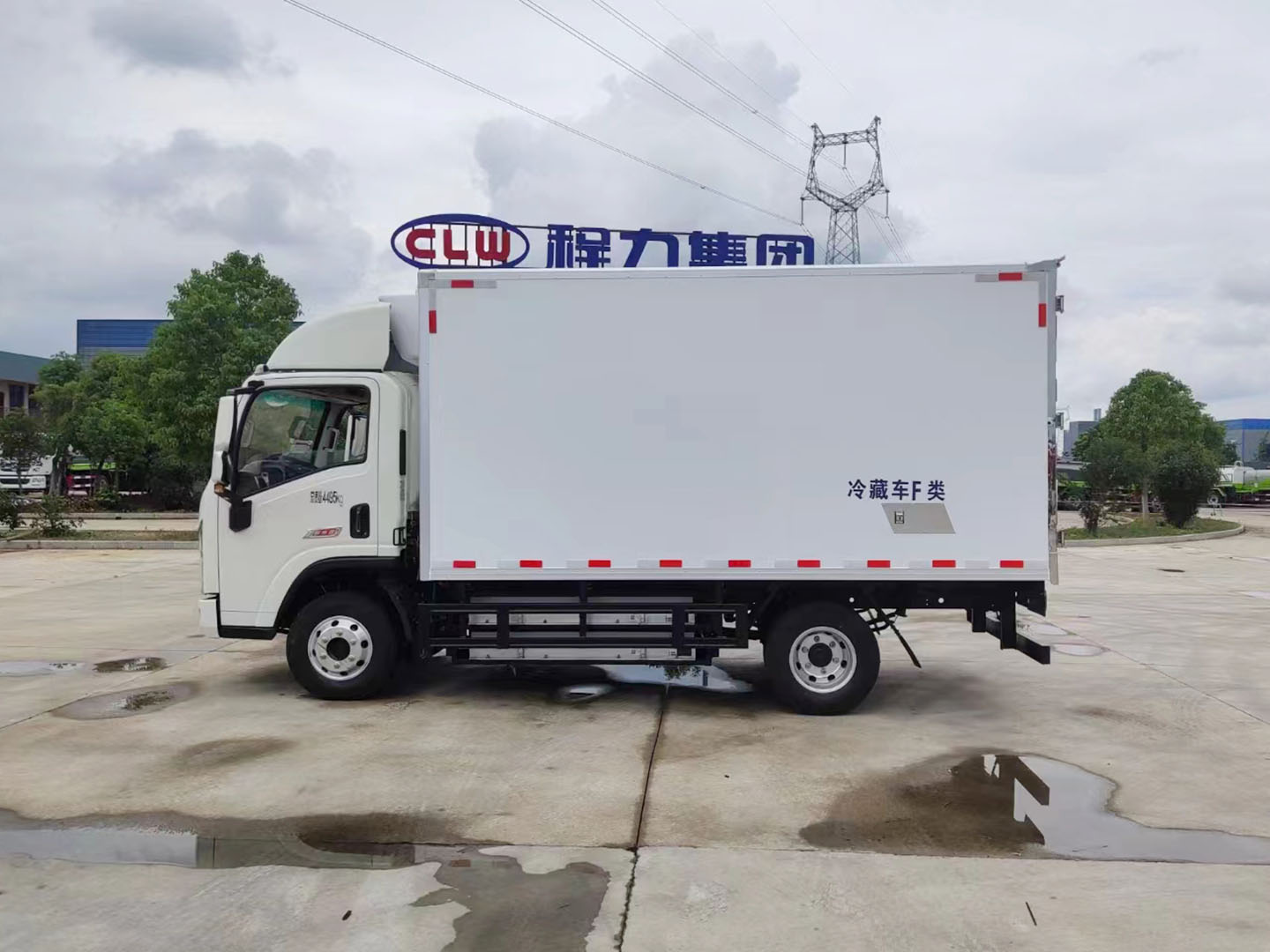

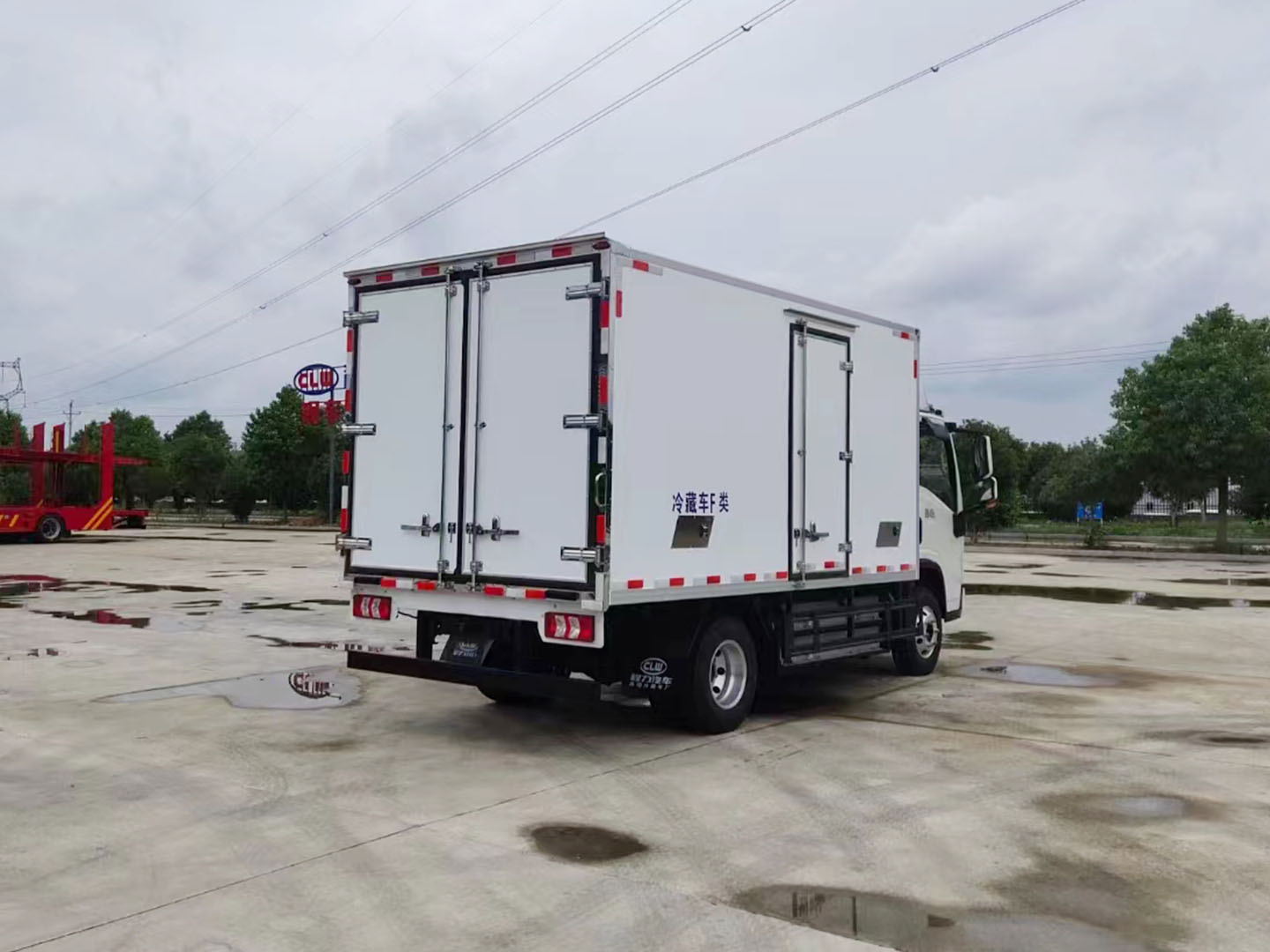

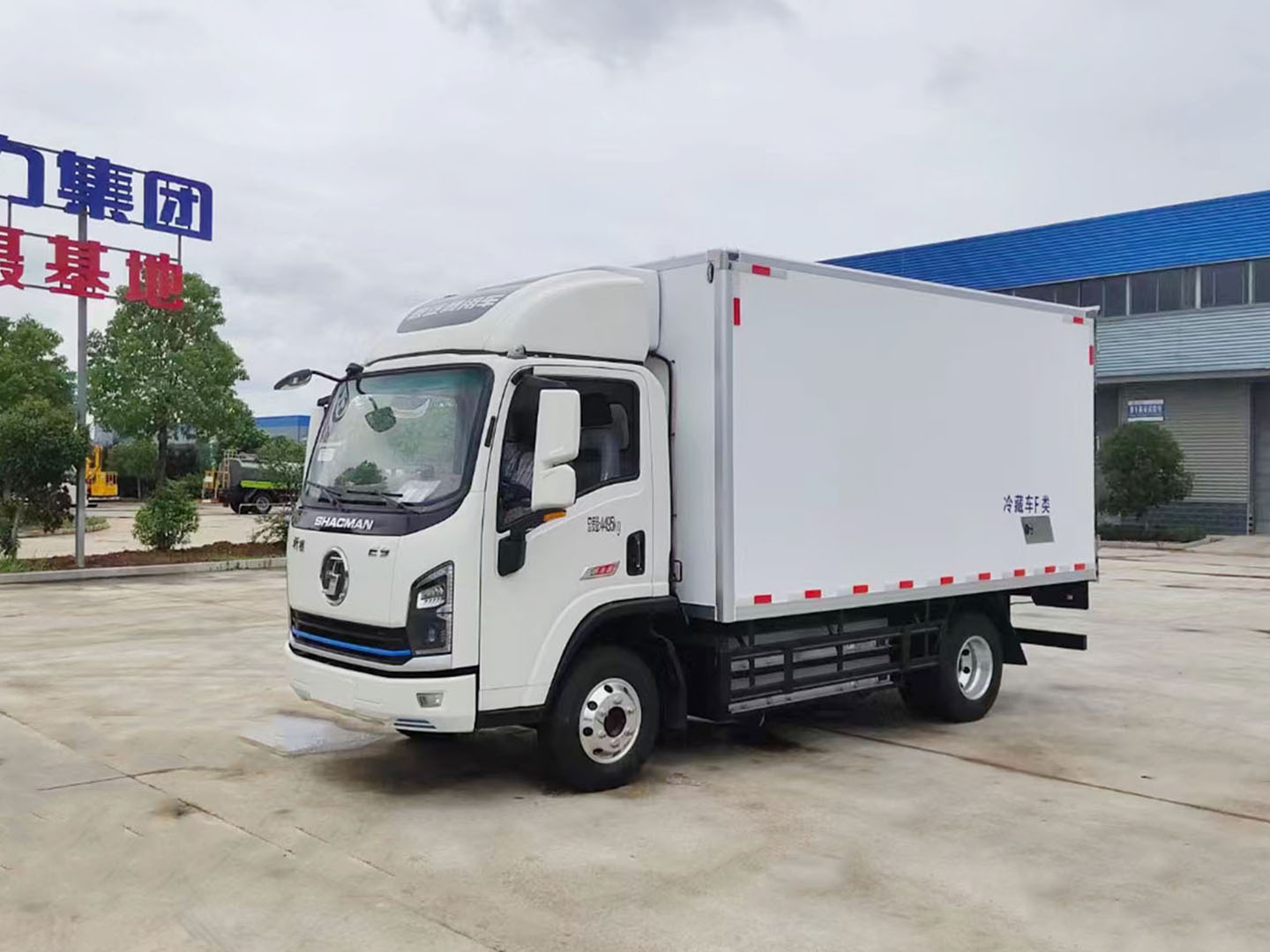

More views of the actual vehicle

Vehicle Model

YTQ5042XLCDEEV331
Chassis Model

Shacman commercial pure-electric dedicated chassis (4×2)
Drive Type

4×2 (single rear axle)
Power Type

Pure electric (new energy)
GVWR

4,495 kg (blue-plate light-duty truck)
Curb Weight

Approx. 3,200 kg (reference, subject to official announcement)
Rated Load Capacity

Approx. 1,000 kg (reference, subject to official announcement)
