The FAW Jiefang J6L high-roof twin-bunk refrigerated truck — product photos and full specifications of this medium-duty box refrigerated truck for frozen food, dairy, fresh vegetables and fruit cold-chain transport.
This J6L model is a 6.8 m box refrigerated truck on the standard medium-duty high-roof twin-bunk cab, powered by a six-cylinder FAW Dachai 240 hp engine with 5.7 L displacement and China VI emission compliance. The 2020-model J6L cab package includes a semi-floating high-roof cab with one-and-a-half rows, electric window lift, electric mirrors, leather ventilated and heated driver seat with lumbar support and armrest, single-DIN BeiDou-compatible telematics, center seat, automatic air conditioning, 300 L steel fuel tank, electro-hydraulic cab tilting, aluminum air reservoirs, VOSS couplings, cruise control, 120 Ah battery, 50,000 km long-life oil change intervals for engine/gearbox/axle, 7/7+6 suspension, right-turn audio warning, brake-lining wear alarm, seat-belt reminder and a T-Box 1.1 with 89 km/h speed limiter.
Product overview
Announcement Parameters
- Vehicle Model: CA5180XLCP62K1L4E6
- Chassis Model: FAW J6L high-roof twin-bunk dedicated chassis (4×2)
- Drive Type: 4×2 (single rear axle)
- Emission Standard: China VI
- GVWR: 18,000 kg
- Curb Weight: Approx. 8,500 kg (reference, subject to the official announcement)
- Rated Load Capacity: Approx. 9,300 kg (reference, subject to the official announcement)
Chassis Configuration
- Engine: FAW Dachai Deutz diesel engine (240 hp, 5.7 L)
- Transmission: Fast 8-speed gearbox, with air-cutoff brake and power steering
- Wheelbase / Tires: 5,000 mm wheelbase; 275/80R22.5 tubeless tires
- Standard Equipment: High-roof twin-bunk cab, leather ventilated/heated seats, electric windows, electric mirrors, 300 L steel fuel tank, cruise control, BeiDou telematics system, automatic A/C
Body Configuration
- Box Dimensions: Internal box dimensions: 6,800×2,450×2,500 mm; effective volume approx. 41.6 m³
- Body Material: FRP inner/outer skins with high-density polyurethane insulation core, anti-slip patterned aluminum floor, aluminum-profile edging, stainless steel corners/locks/hinges
- Refrigeration Unit: Optional domestic or imported unit: fresh-keeping -5 °C / frozen -15 °C; dual refrigeration unit available on request
- Door Configuration: Rear double doors + side door, with LED interior lighting
- Optional Features: Box ventilation chutes, meat-hook rails, temperature/humidity recorder, hydraulic tail lift, leak-proof reinforcement, etc.

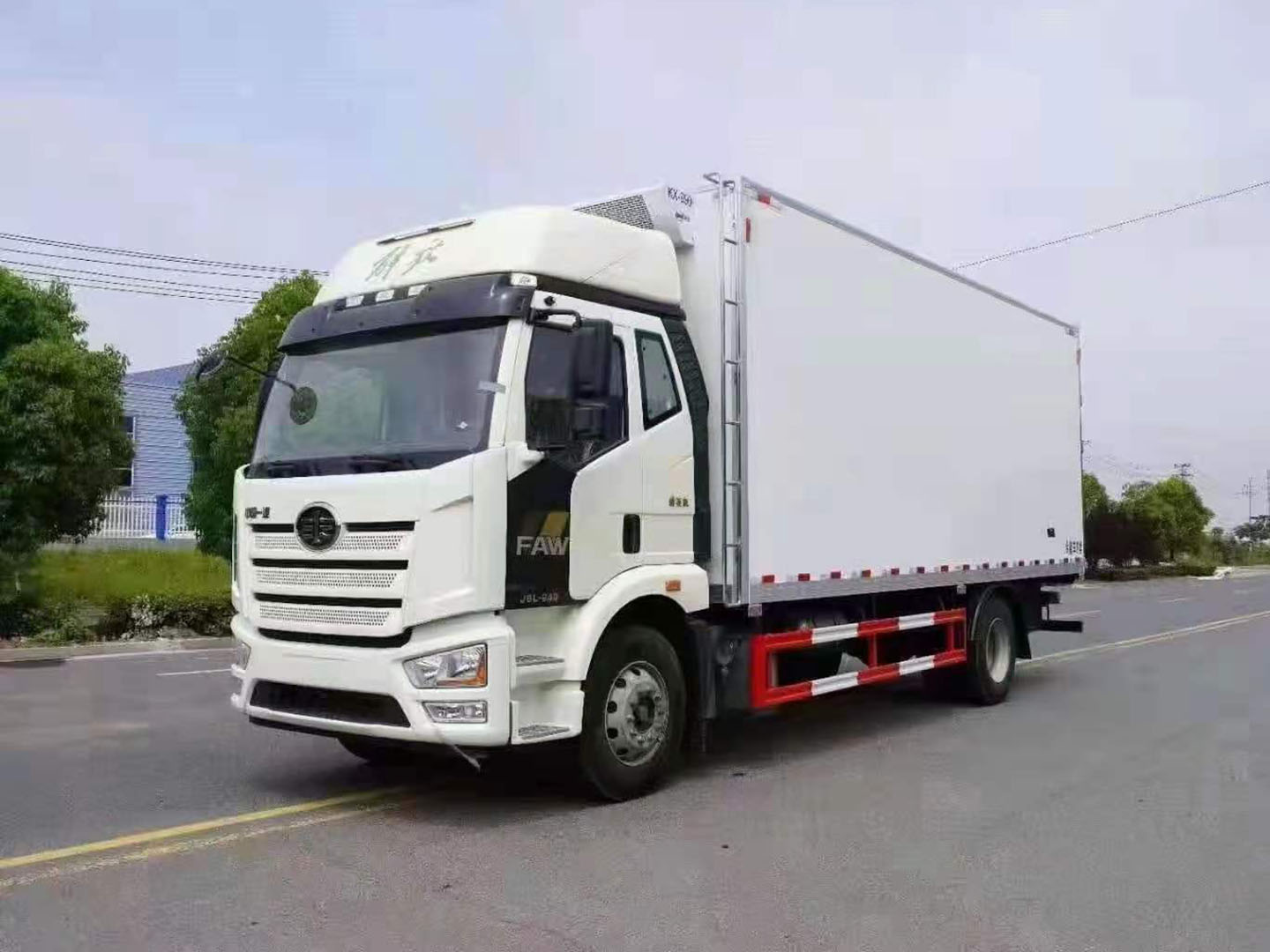

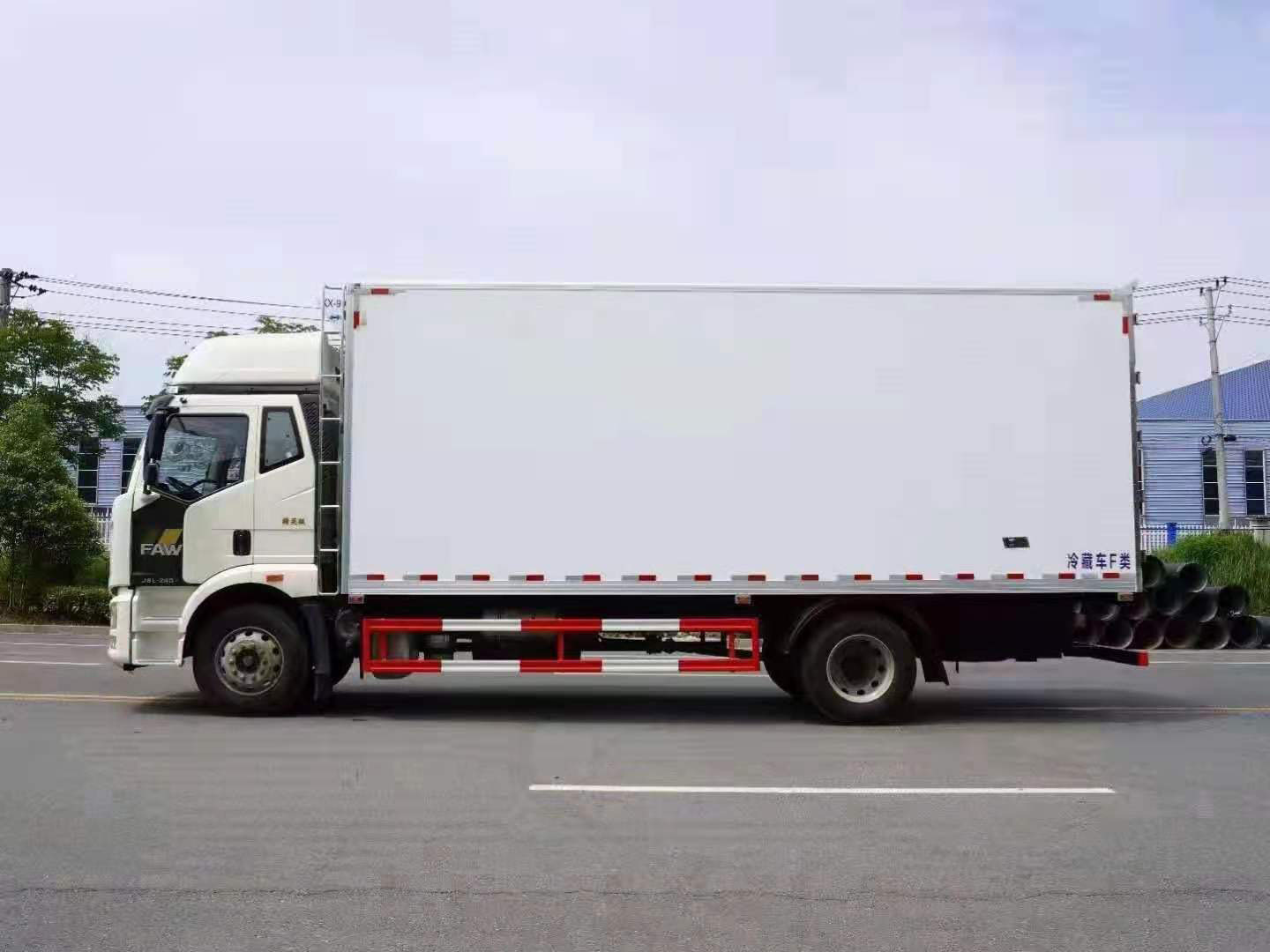

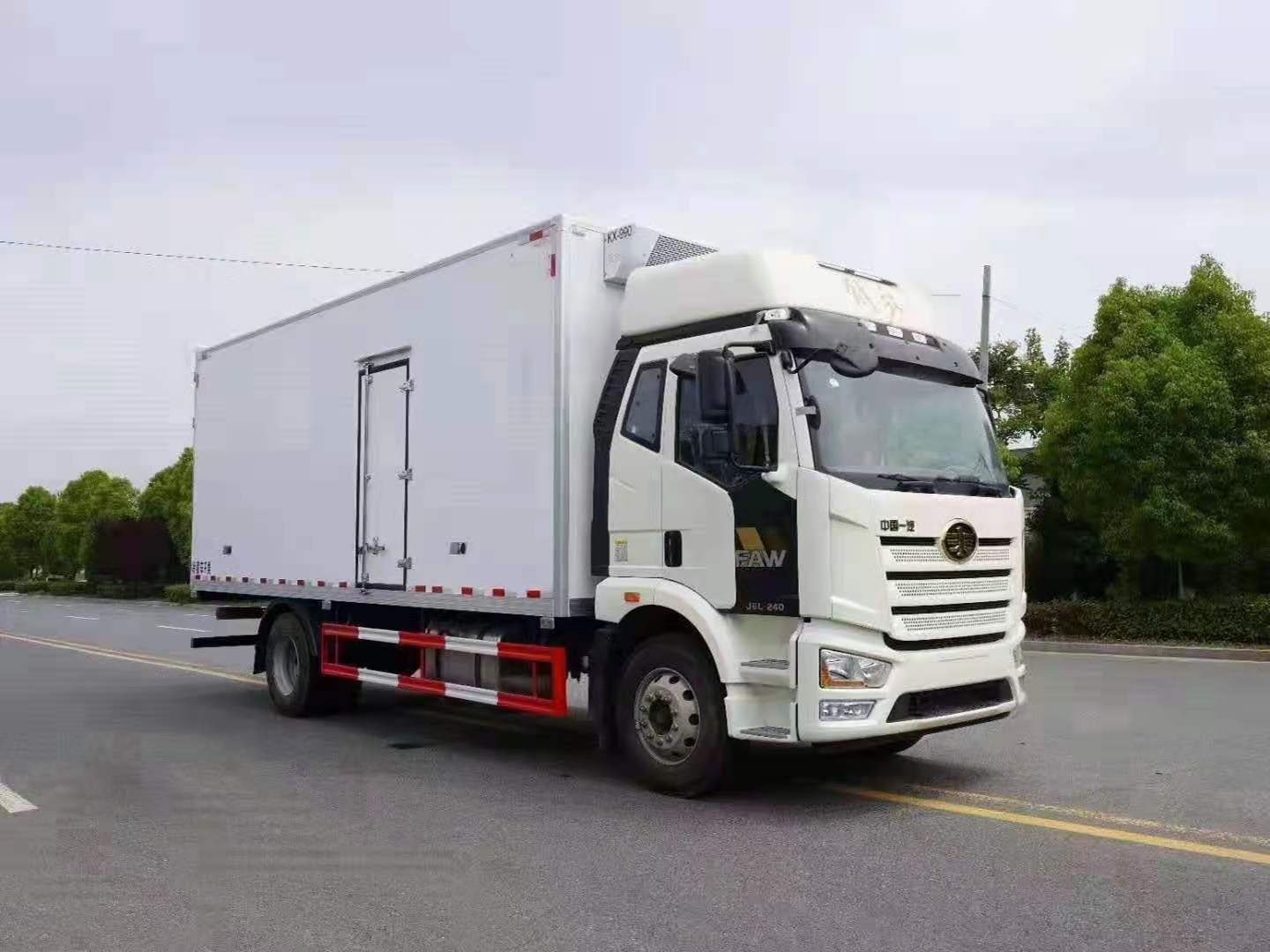

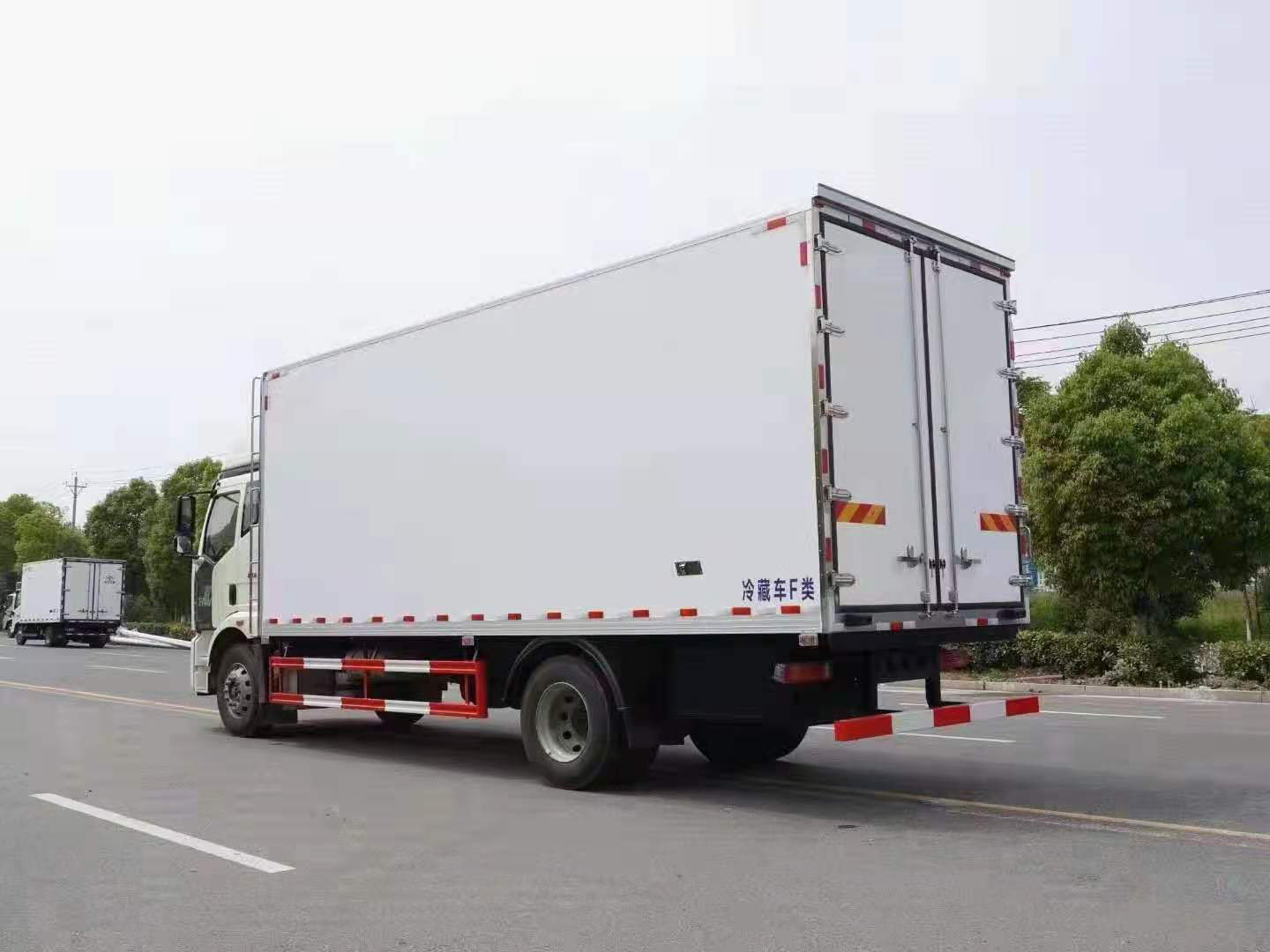

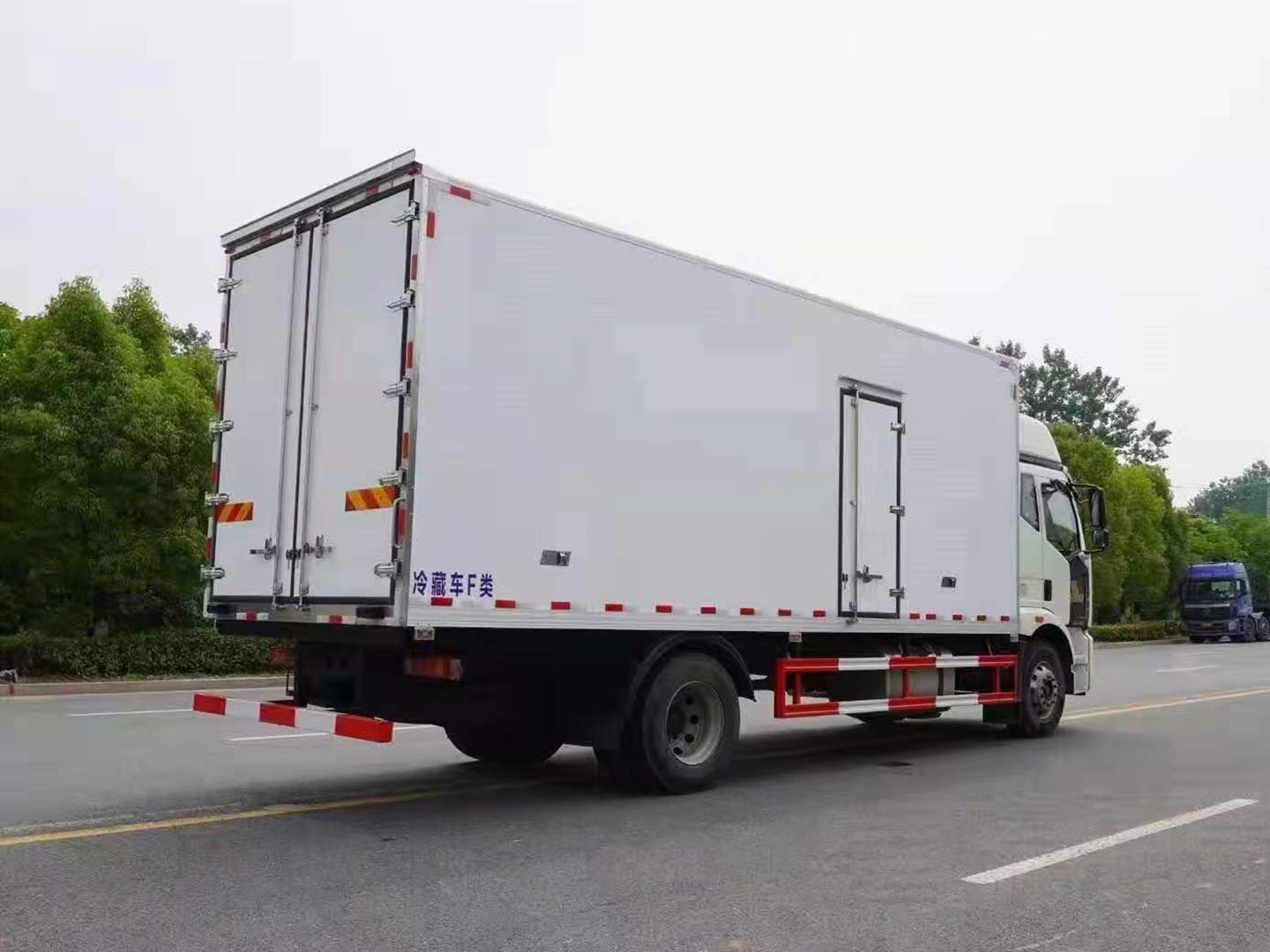

More views of the actual vehicle
