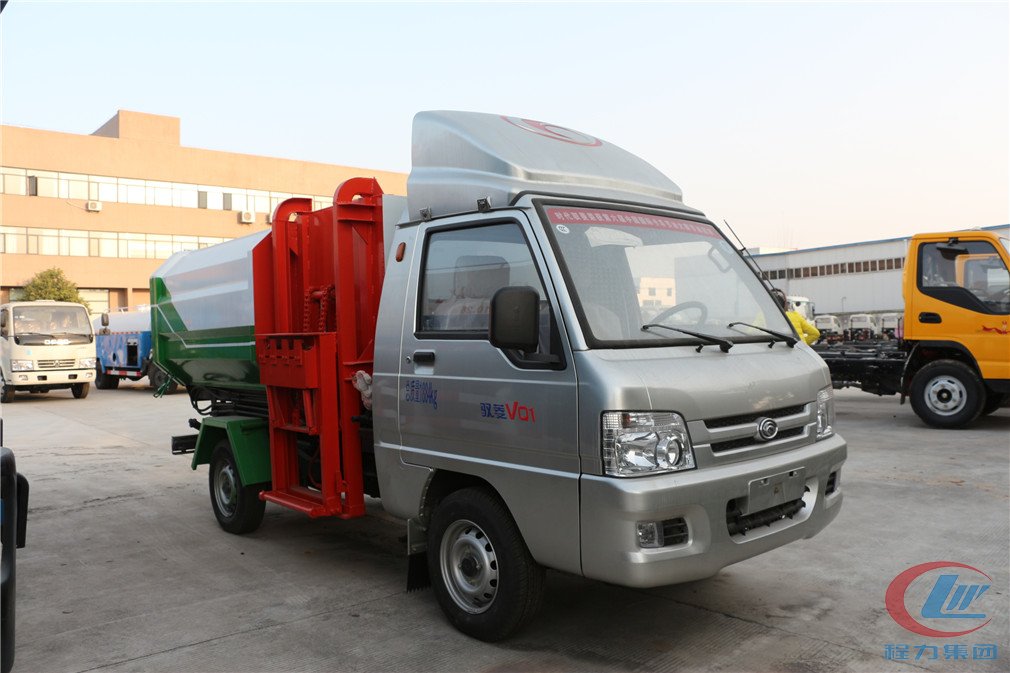

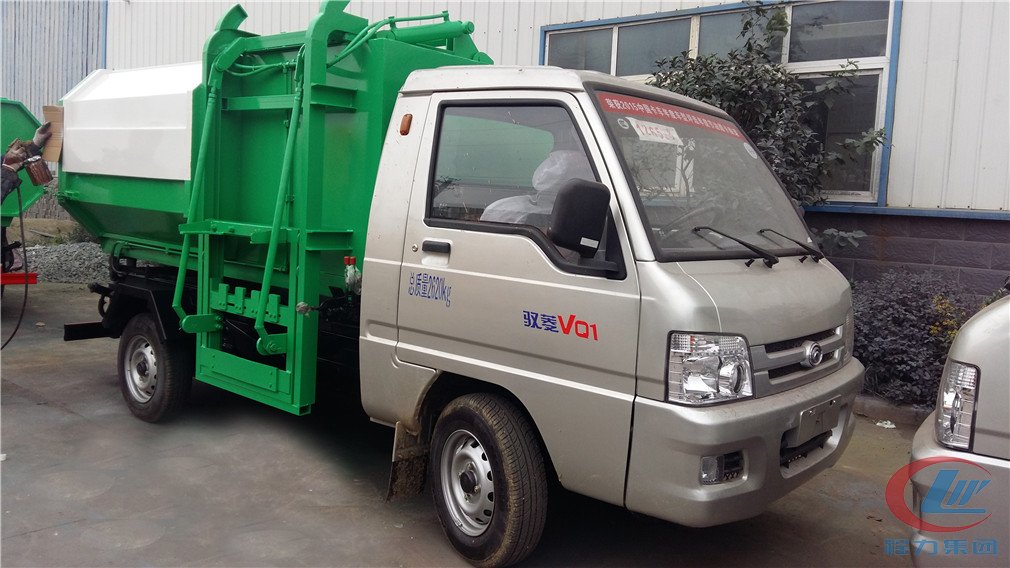

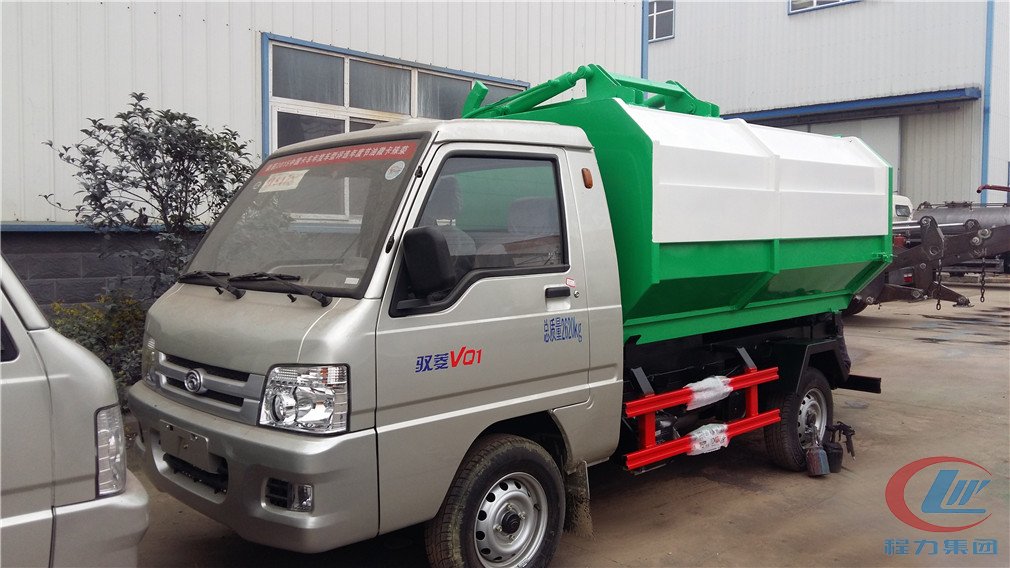

Barrel garbage truck built on the Foton Yuling China VI micro-truck chassis with a single-row cab and hydraulic-assisted controls.
Standard 240 L barrels are hooked and tipped automatically into the fully sealed 2–3 m³ body; the built-in leachate tank keeps the route clean and free of secondary pollution.
Product overview
Announcement Parameters
- Vehicle Model: CLW5020ZZZ6
- Chassis Model: Foton Yuling China VI micro-truck chassis
- Drive Type: 4×2 (single rear axle)
- GVWR: 2,620 kg
- Rated Load Capacity: 420 kg
- Body Volume: 2–3 m³
Chassis Configuration
- Cab: Single-row cab
- Engine: China VI gasoline engine, 80–90 hp
- Transmission: 5-speed manual gearbox
- Tire Specification: 5.00R12 steel radial tires
- Standard Equipment: Factory ABS, power windows, A/C, power steering, clutch servo, hydraulic braking
Body Configuration
- Core Equipment: Fully enclosed steel refuse body with automatic barrel lifting-and-tipping mechanism and hydraulic control system
- Working Mode: Directly hooks standard 240 L bins and tips refuse into the body automatically; no compression function
- Control Method: Simple tail operating panel
- Leachate Treatment: Leachate collection tank under the body prevents drips during transport and avoids secondary pollution
- Applications: Household waste collection in old neighborhoods, back alleys and commercial districts; compact body suited to narrow roads
