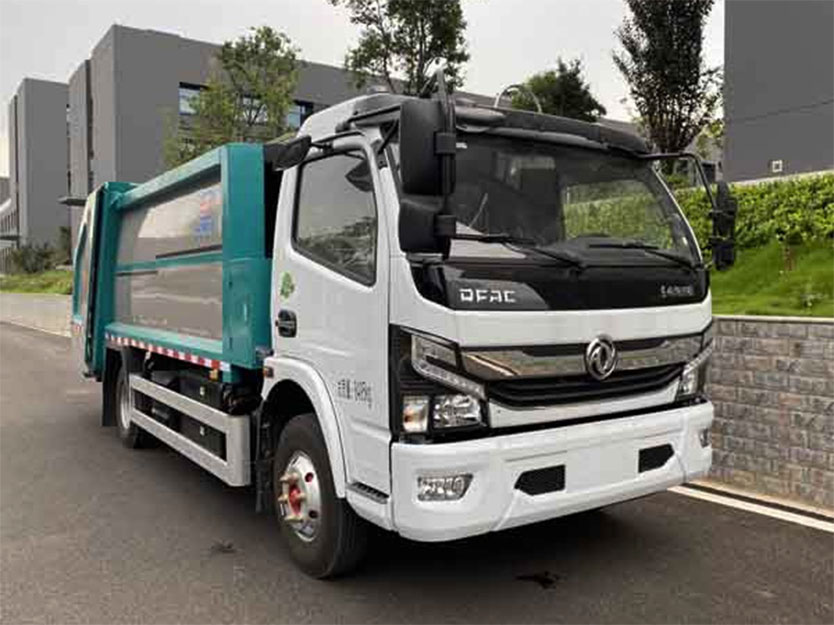

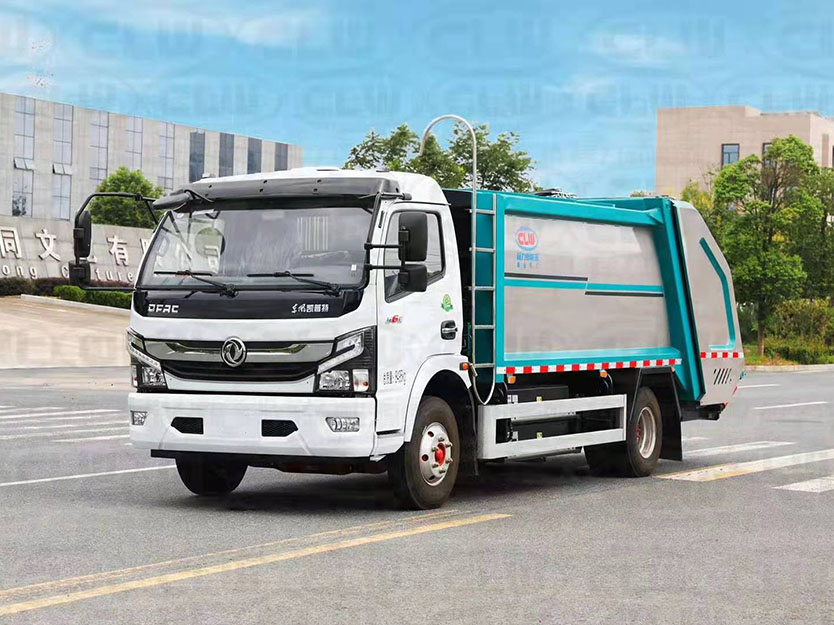

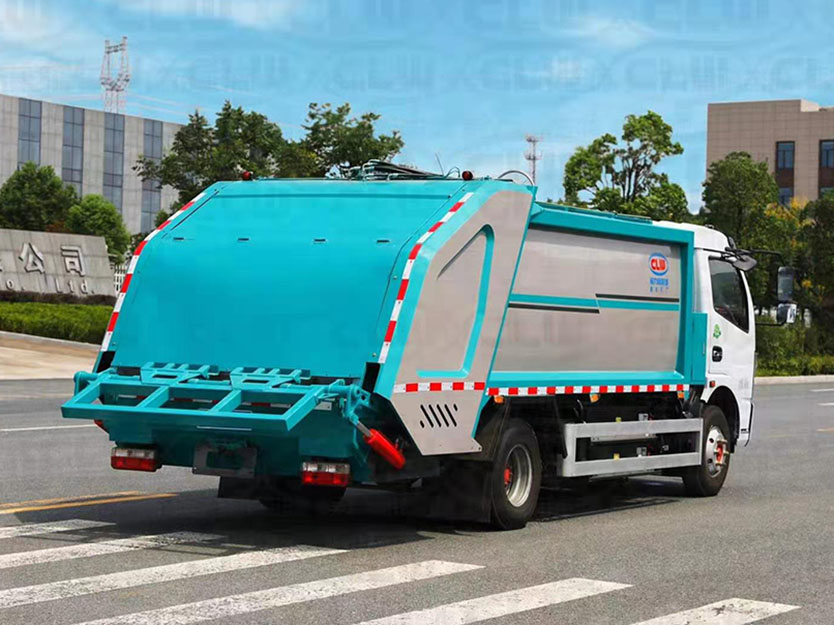

The Dongfeng Kaipute CLW5080ZYSBEV is a fully electric garbage compactor truck developed for refuse collection in environmentally sensitive urban areas. Refuse is force-compacted by an electro-hydraulic mechanism to reach 2–3 times the loading volume of an ordinary garbage truck, with fully enclosed, leak-free operation and zero exhaust.
Product overview
Announcement Parameters
- Vehicle Model: CLW5080ZYSBEV
- Chassis Model: Dongfeng Kaipute pure electric dedicated chassis
- Drive Type: 4×2 (single rear axle)
- GVWR: 8,280 kg
- Rated Load Capacity: 3,500 kg
- Box Volume: 6–7 m³
Chassis Configuration
- Cab: Single-row cab
- Power Type: Pure electric (zero emission)
- Motor Parameters: Permanent magnet synchronous motor, peak power 120 kW, rated power 60 kW
- Battery Parameters: CATL LiFePO₄ battery, approx. 80–100 kWh
- Driving Range: Approx. 150 km under municipal-sanitation duty; approx. 200 km combined-cycle range
- Transmission: Single-speed direct-drive gearbox
- Tire Specification: 7.50R16 steel radial tires
- Standard Equipment: Factory ABS, electric A/C, power steering, air braking, fast & slow charging ports, central locking, electric windows
Body Configuration
- Core Equipment: High-strength manganese-steel compaction body, electro-hydraulic compaction mechanism, Siemens PLC control system, push-plate / scraper / slider compaction structure, Hefei Changyuan hydraulic pump, imported seals, Bangwei hydraulic hoses, sewage collection tank
- Working Mode: Fully electric with zero exhaust; refuse is fed through the rear hopper and force-compacted — loading capacity is 2–3 times that of a regular garbage truck, fully enclosed and leak-free; ideal for city centers, scenic areas and other zones with strict environmental requirements
- Control Mode: Dual operation panels in the cab and at the rear; manual and automatic working modes with cab control; wireless remote control optional
- Anti-Pollution Design: Sewage collection tank under the body prevents dripping and secondary pollution in transit; zero exhaust and low noise
- Application: Refuse collection and transfer on main urban roads, in large communities, commercial areas and scenic districts — zero emission and low noise, compliant with green-transport policies; an ideal new-energy sanitation vehicle
