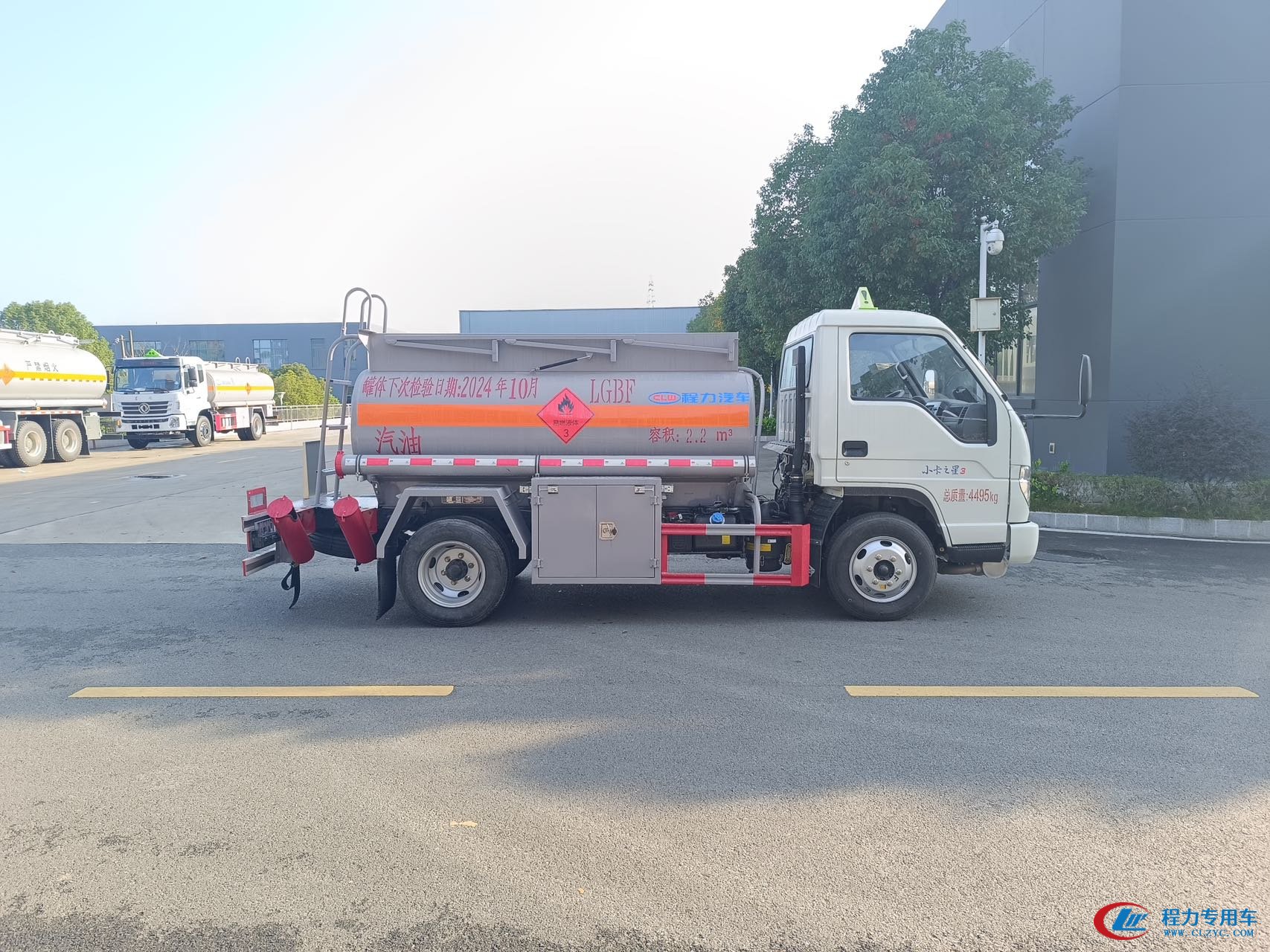

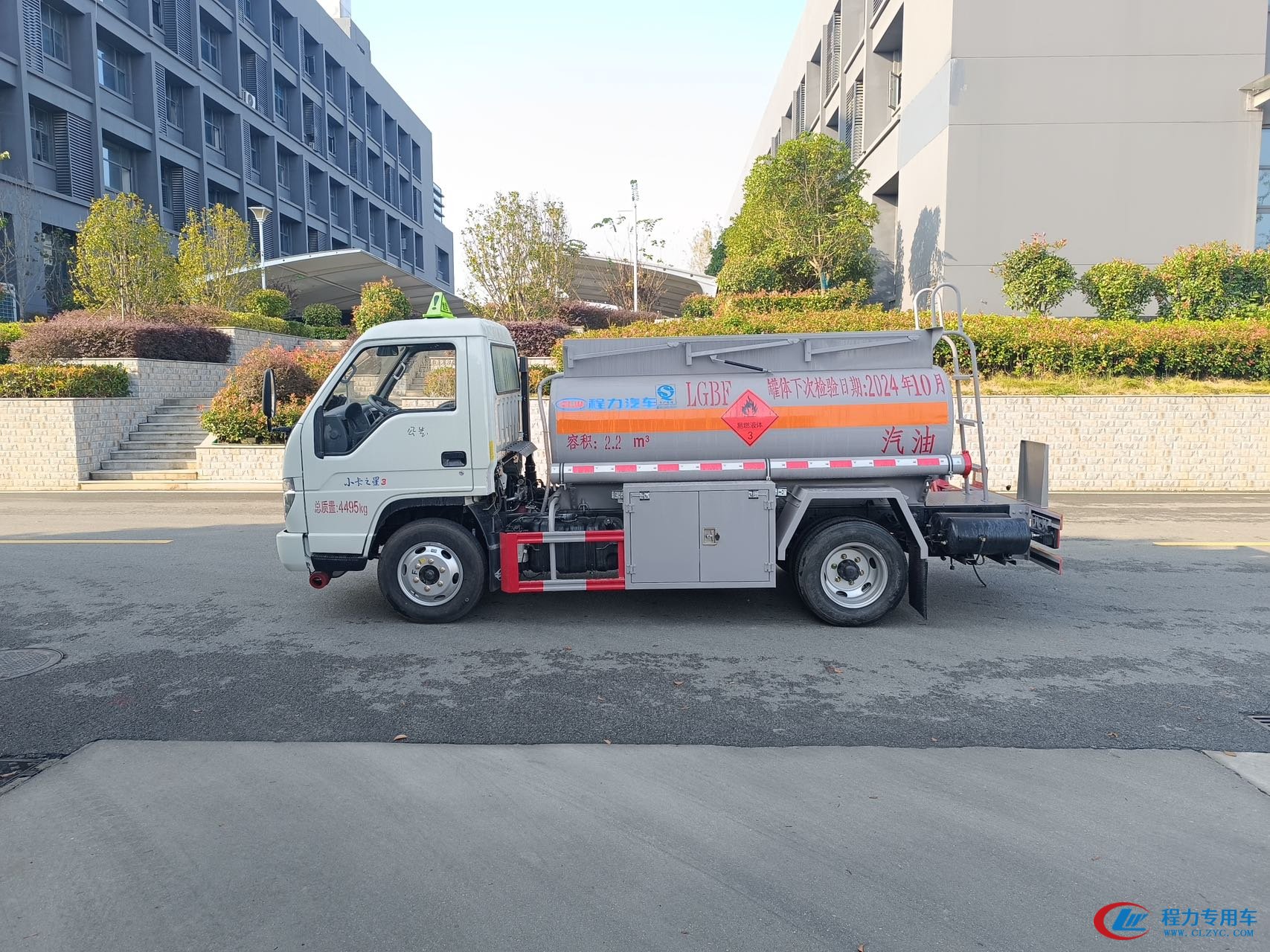

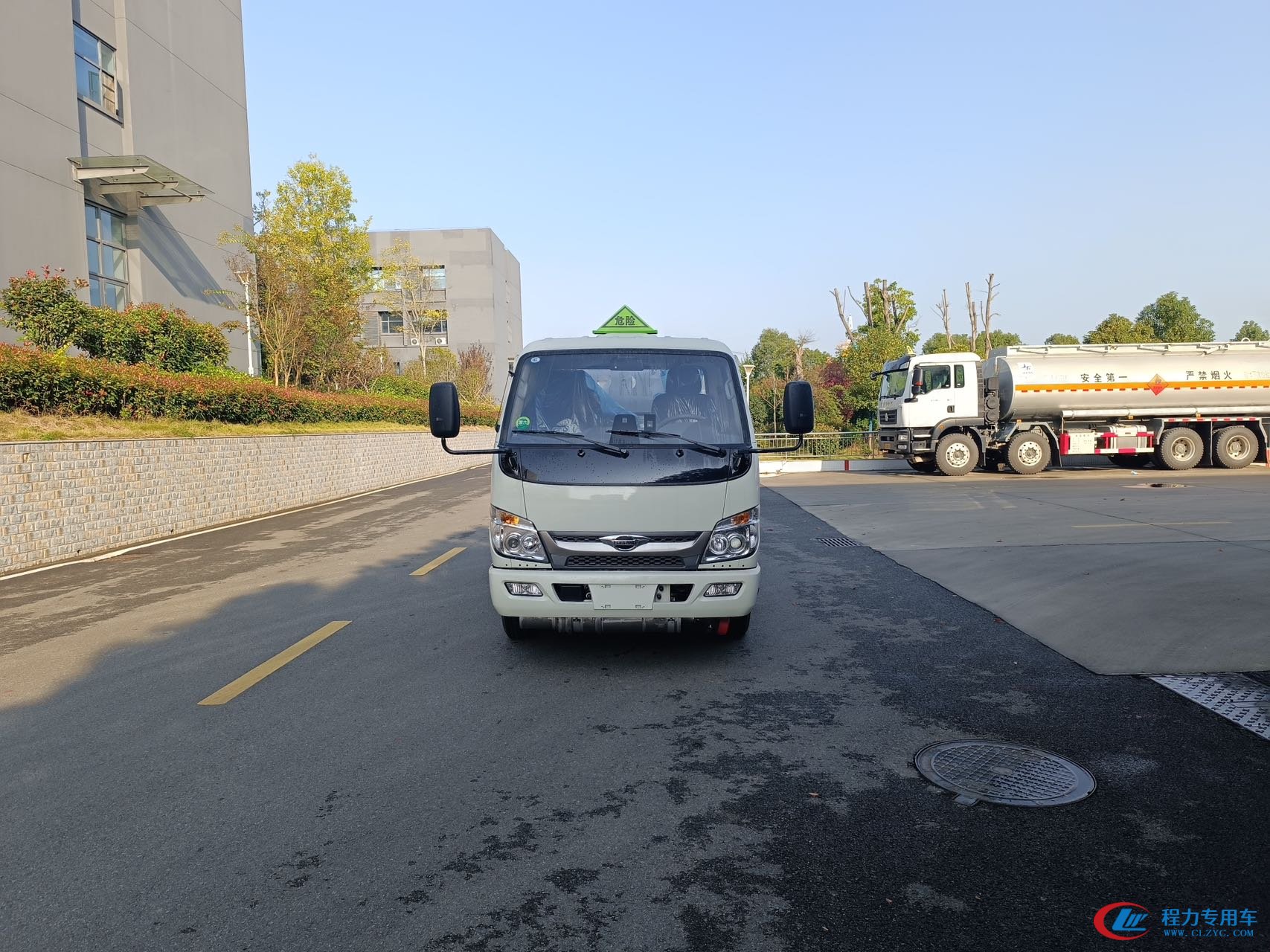

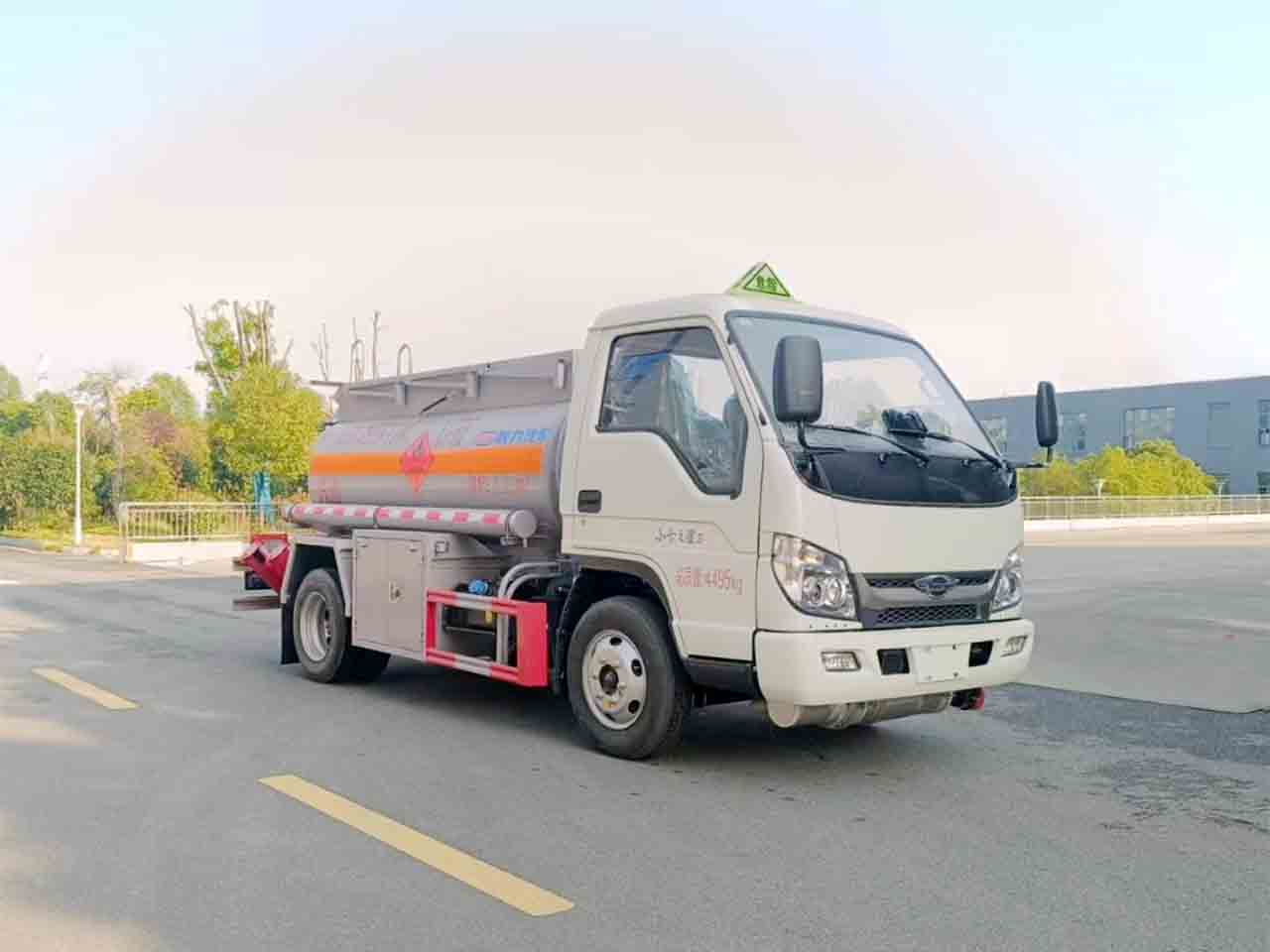

China VI Foton Times Small-Cab Blue-Plate Fuel Tanker Truck

The CLW5040GJY6 China VI blue-plate fuel tanker on the Foton Times small chassis carries a 2.2 m³ announced (2.5 m³ effective) tank, a Quanchai 115 hp engine and a full European-standard bottom-loading and vapor-recovery kit — C1-license drivable.

Vehicle Model

CLW5040GJY6
Vehicle Type

4×2 blue-plate fuel tanker (China VI)
Drive Type

4×2 (single rear axle)
GVWR

4,495 kg
Curb Weight

approx. 2,800 kg (reference; per official announcement)
Rated Load Capacity

approx. 1,500 kg (reference; per official announcement)
Tank Volume

2.2 m³ announced, 2.5 m³ effective (custom compartments available)
Inquiry

Compact China VI blue-plate fuel tanker built on the Foton Times small truck chassis with a Quanchai 115 hp diesel engine — a light vehicle that can be driven with a C1 license.

The 2.2 m³ announced (2.5 m³ effective) tank suits small fuel-station supply, farm and construction-site refueling where big tankers cannot enter.

China VI Foton Times Small-Cab Blue-Plate Fuel Tanker Truck

Product overview

Announcement Parameters

  • Vehicle Model: CLW5040GJY6
  • Vehicle Type: 4×2 blue-plate fuel tanker (China VI)
  • Drive Type: 4×2 (single rear axle)
  • GVWR: 4,495 kg
  • Curb Weight: approx. 2,800 kg (reference; per official announcement)
  • Rated Load Capacity: approx. 1,500 kg (reference; per official announcement)
  • Tank Volume: 2.2 m³ announced, 2.5 m³ effective (custom compartments available)

China VI Foton Times Small-Cab Blue-Plate Fuel Tanker Truck

Chassis Configuration

  • Engine: Foton Times small-truck China VI diesel engine (Quanchai, 115 hp)
  • Transmission: Wanliyang 5-speed gearbox with power take-off
  • Wheelbase / Tires: 2,850 mm wheelbase; 6.50R16 steel radial tires
  • Brake System: Front disc / rear drum, air-parking brake, exhaust brake; standard ABS, self-adjusting brake arms, new-regulation dual warnings (forward collision + lane departure)
  • Standard Equipment: Dangerous-goods cab, power steering, central locking, power windows, fire extinguisher, static grounding strap, side & rear underrun protection, T-BOX telematics terminal

China VI Foton Times Small-Cab Blue-Plate Fuel Tanker Truck

Body Configuration

  • Tank Material: Q235B carbon-steel anti-static anti-explosion tank; shell 4.2 mm, heads 4.5 mm, baffles 4.2 mm; single compartment
  • Tank Structure: Horizontal cylindrical tank; one European-standard manhole on top; one bottom emergency valve with voice alarm; internal baffles and reinforcing rings
  • Dispensing System: 60/30 dedicated fuel pump (pump-in/pump-out); full European-standard system (bottom loading, vapor recovery, overfill-prevention probe, static reel); optional large-flow dispenser with 15 m heavy-duty hose reel and nozzle
  • Safety Accessories: Breather valve, overflow valve, baffles, anti-static device, extinguisher box, anti-leak device, rear ladder, manual railing, toolbox, rear bumper, side guards, reflective and flammable-liquid markings
  • Optional Extras: Flow meter, level gauge, tank insulation, compartment dividers, onboard pump set

China VI Foton Times Small-Cab Blue-Plate Fuel Tanker Truck

Vehicle Model

CLW5040GJY6
Vehicle Type

4×2 blue-plate fuel tanker (China VI)
Drive Type

4×2 (single rear axle)
GVWR

4,495 kg
Curb Weight

approx. 2,800 kg (reference; per official announcement)
Rated Load Capacity

approx. 1,500 kg (reference; per official announcement)
Tank Volume

2.2 m³ announced, 2.5 m³ effective (custom compartments available)
