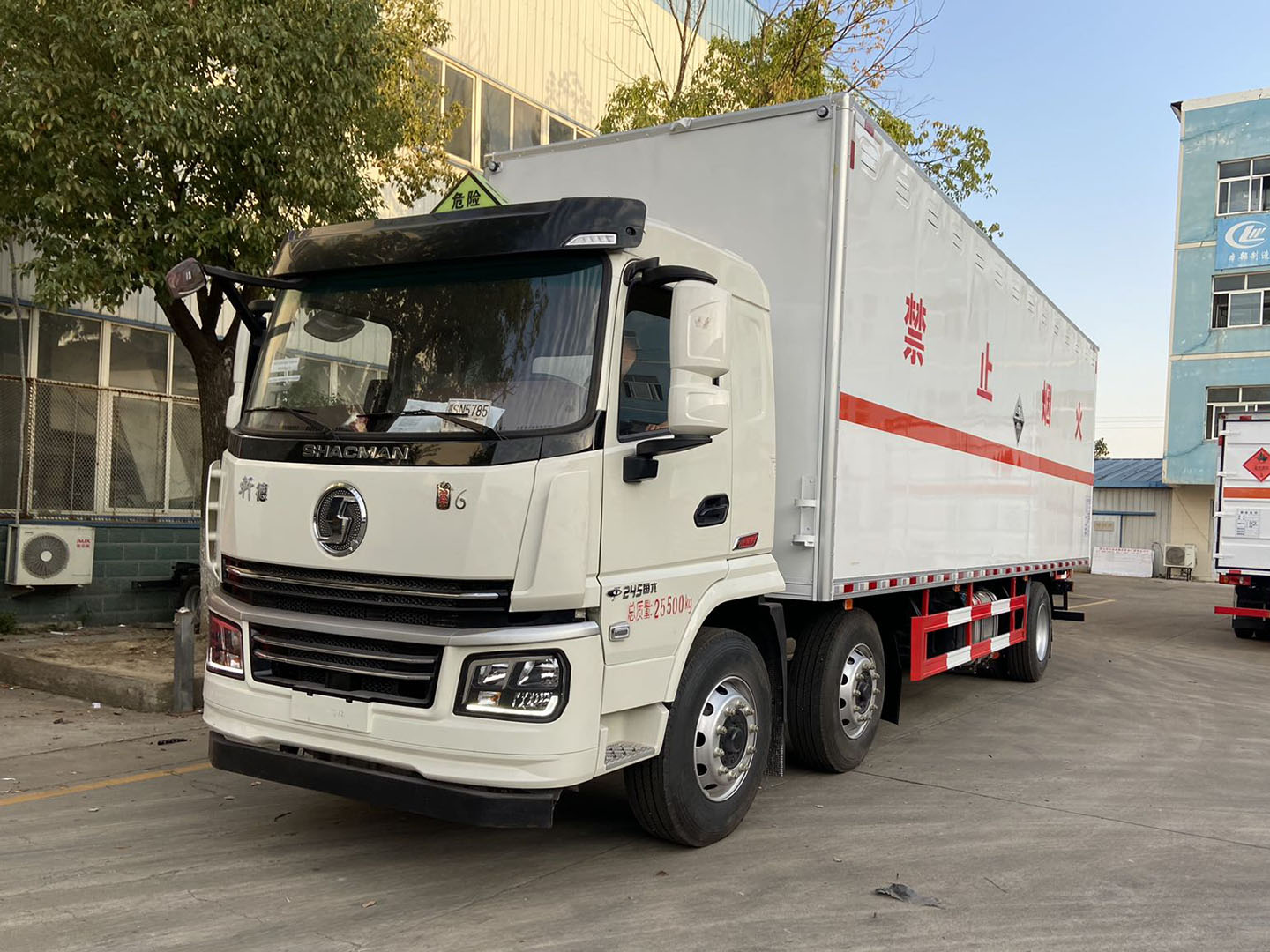

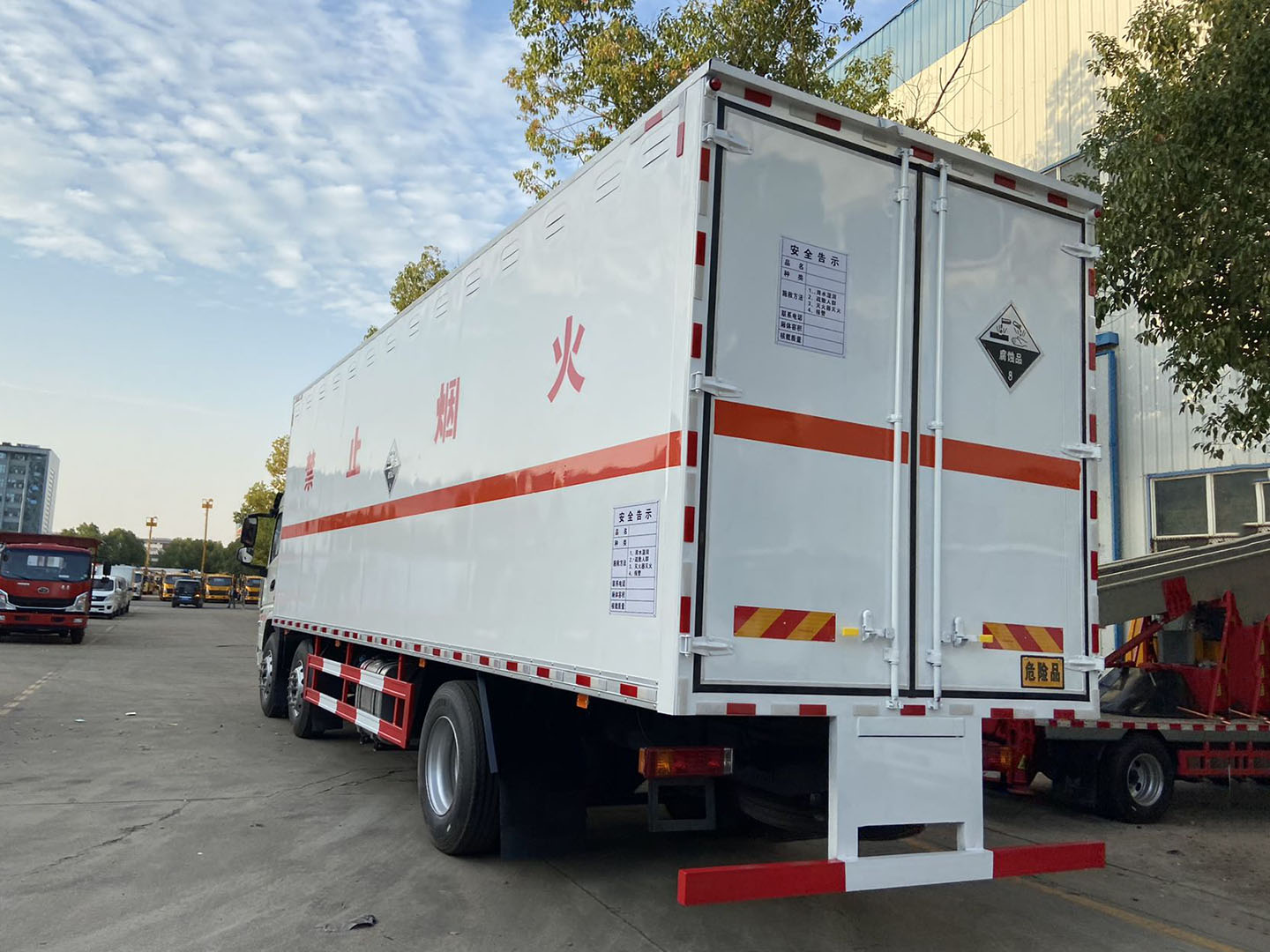

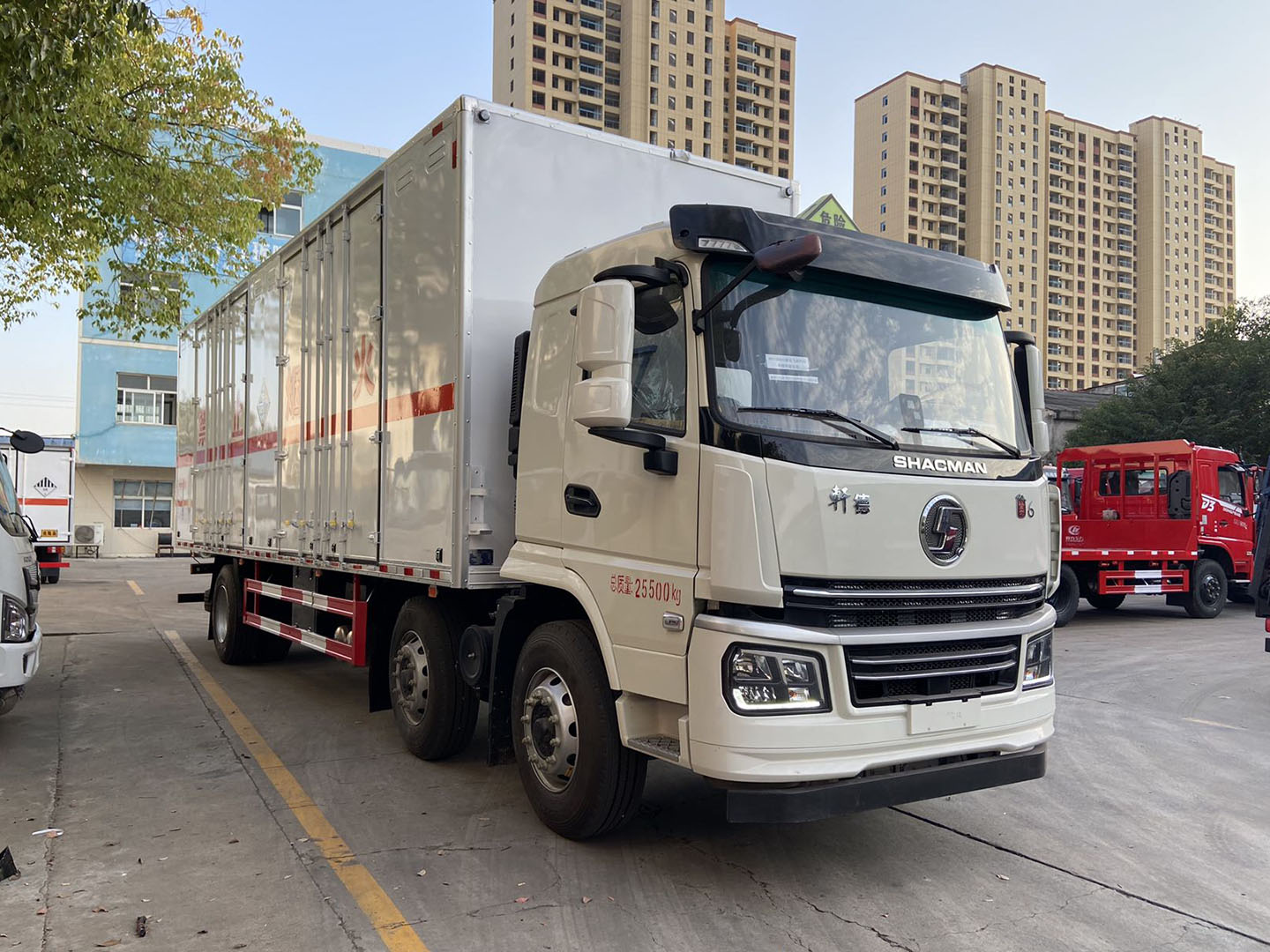

Chengli intelligent-van-series Shaanxi tri-axle (6×2) transport truck for Class 8 corrosive substances and blasting materials, with a 40 m³ load room for high-volume dangerous-goods logistics.
The van combines a 1.2 mm cold-rolled steel outer shell, conductive aluminum inner lining and anti-static, moisture-proof, flame-retardant extruded-board insulation, with full explosive-goods markings.
Product overview
Announcement Parameters
- Vehicle Model: CLW5220XQY6
- Vehicle Type: Explosion-proof transport van (China VI)
- Drive Type: 6×2 (tri-axle)
- GVWR: 22,500 kg
- Curb Weight: approx. 10,500 kg (reference; per official announcement)
- Rated Load Capacity: approx. 11,800 kg (reference; per official announcement)
- Van Volume: approx. 40 m³ (custom compartments by medium available)
Chassis Configuration
- Engine: Yuchai China VI diesel engine (245 hp)
- Transmission: 8-speed synchromesh gearbox with power take-off
- Wheelbase / Tires: 1,800+4,600 mm wheelbase; 11.00R20 steel radial tires
- Brake System: Front disc / rear drum; standard ABS, EBS, speed limiter, forward-collision warning + lane-departure warning
- Standard Equipment: Dangerous-goods cab with air-suspension seat, factory A/C, central locking, power windows, multifunction steering wheel, fire extinguisher, static grounding strap, side & rear underrun protection, spark-arresting exhaust, anti-explosion device
Body Configuration
- Van Material: 1.2 mm cold-rolled steel outer shell; conductive aluminum inner lining with anti-static, moisture-proof, flame-retardant extruded-board insulation; explosive-goods warning markings

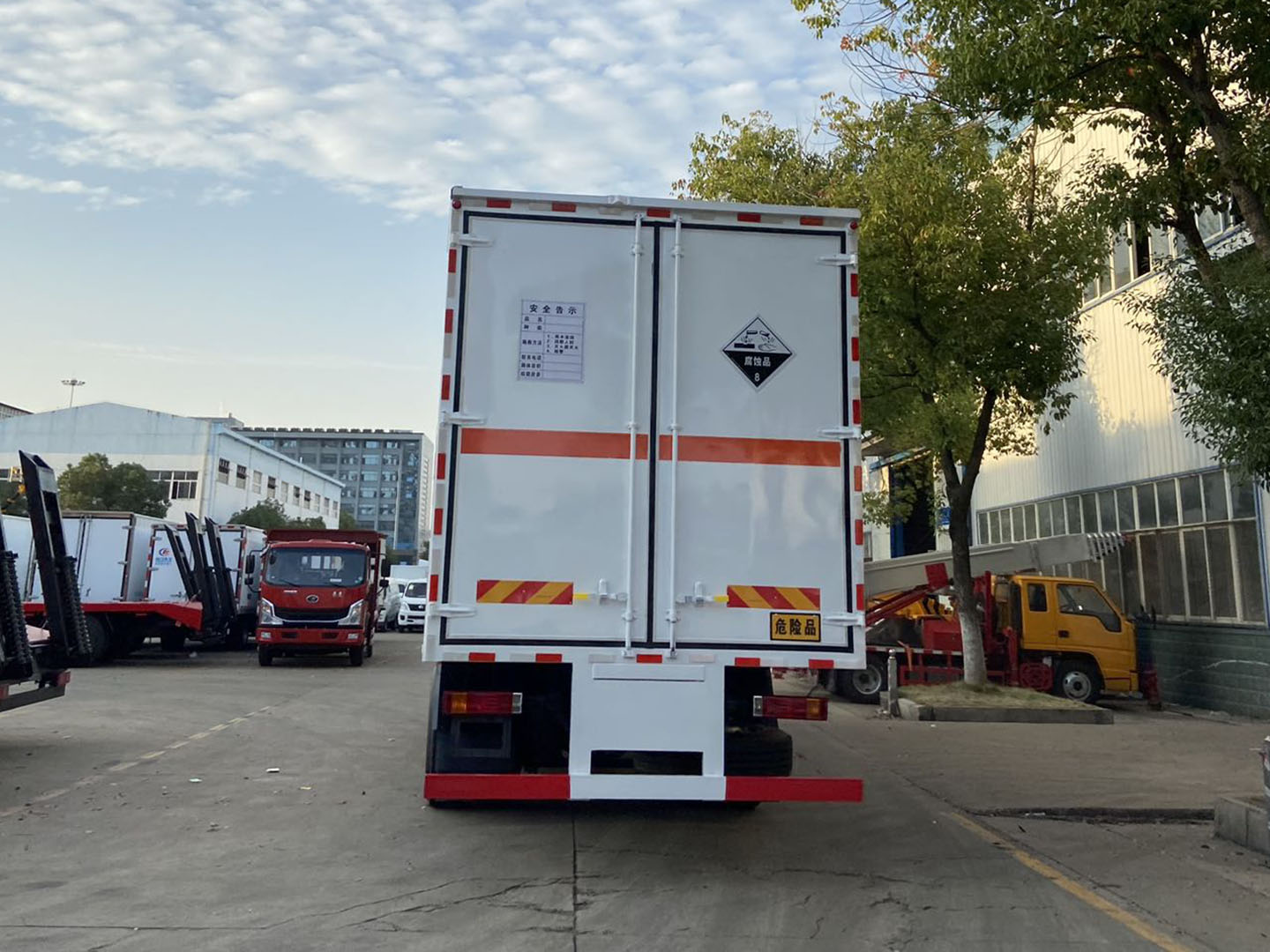

- Van Structure: Side ventilation louvers, double rear doors, reinforced locks, roof ventilators; interior compartments can be customized
- Restraint Gear: Interior cargo tie-down rings and anti-slip rubber matting; optional anti-blast partition and dedicated racks
- Safety Accessories: Extinguisher box, smoke alarm, burglar alarm, static grounding strap, reflective markings, no-smoking/no-flame warnings, dangerous-goods marker lamp, dedicated onboard smoke alarm and rear-door anti-theft device
- Optional Extras: Explosion-proof A/C, vehicle GPS, compartment dividers, explosion-proof lamps, automatic fire-suppression system
